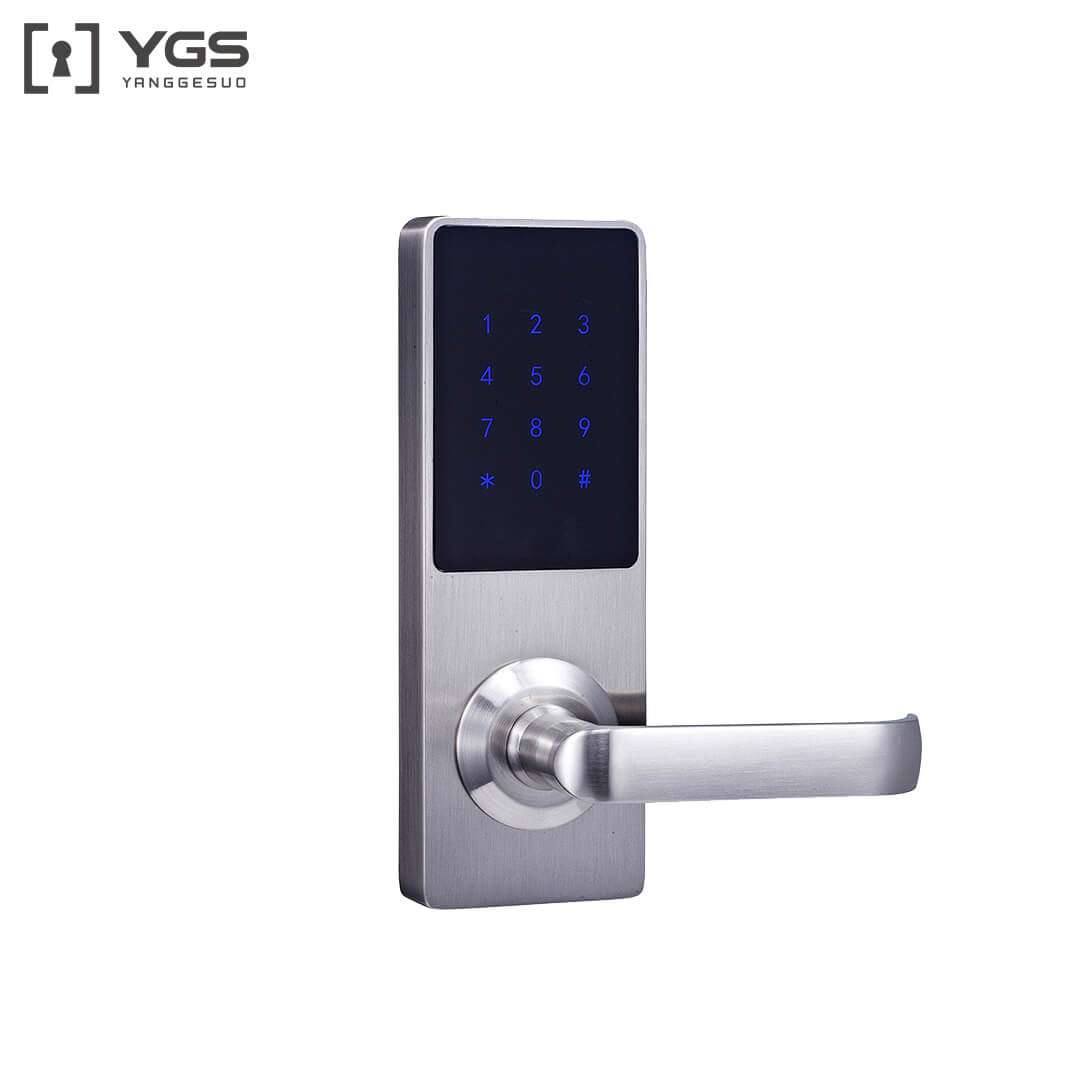

YGS6675 is a digital door lock includes: fingerprint, password, card, mechanical key, APP, 5-in-one-solution high tech product, provides comprehensive unlocking solution and experience for every members of your family.

YGS6675 Catalogue

YGS6675  Manual

YGS6675 Installation Diagram


YGS-6675 Installation




YGS6675 is a fingerprint lock with voice-guided feature, which makes operation very easy and quick. It uses the mechanical anti-theft mortise with one latch and multi security deadbolts, that allows users to lock the door from both indoor and outdoor. Meanwhile, YGS6675 has various approaches to open the door, such as with fingerprint, password, card and key. In urgent situation, you could use mechanical key or USB to unlock. All in all, YGS6675 presents the advanced electromechanical technology, which provides high home security and great convenience.

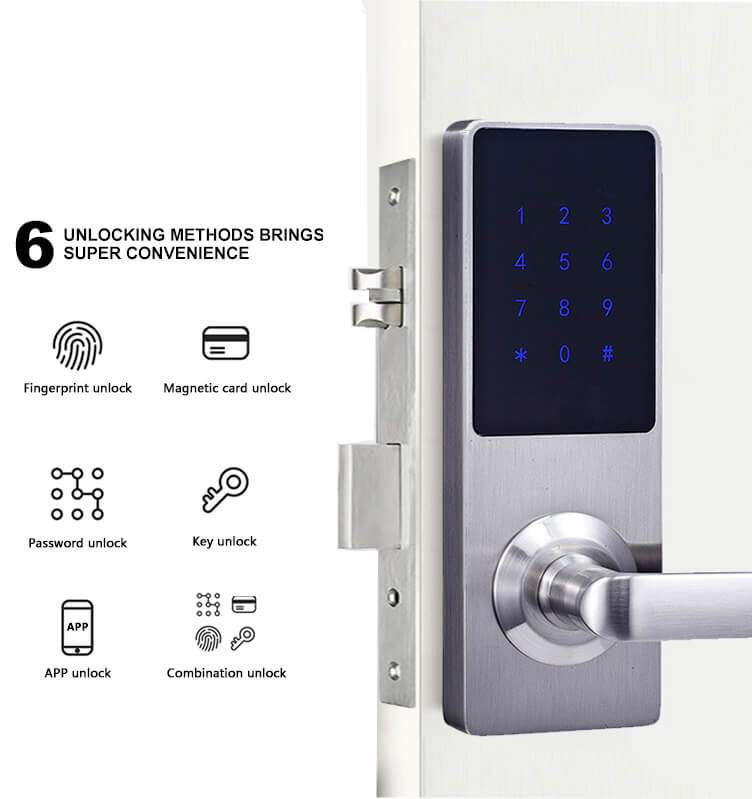

1. Access by Bluetooth App, M1 Card, Pass code, Wristband or key.

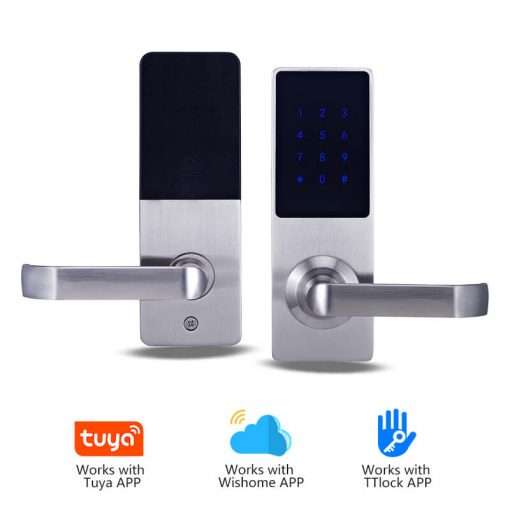

2. TUYA is available to choose.
3. Compatible with various mortise to fit 99% doors.
4. Unique stylish thin panel, 200*70mm, it can be fit most of the wooden, sliding doors.
5. Strong and secure stainless steel lock panel, Anti-corrosion and firm.
6. Back-up USB external power supply interface, in case the power is dead.
7. Reversible free style handle.
8. Upgraded structure with waterproof rubber, which can be used for outside gate.


Technical Specifications

Materialzinc alloy

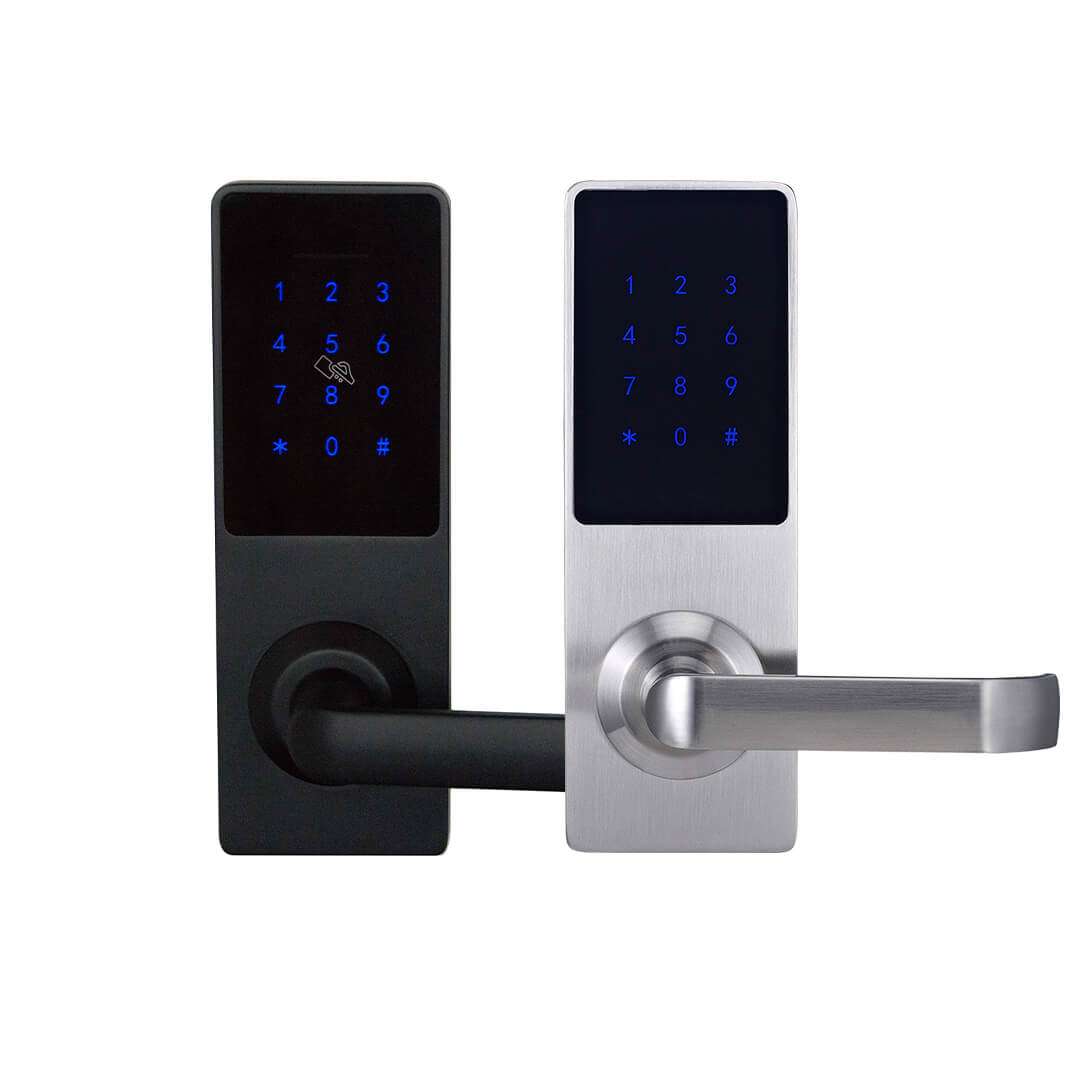

Surface colorBlack, Silver
Indoor faceplateH200*W70*D23 mm
Outdoor faceplateH200*W70*D22 mm
ApplicationHotel, Apartment, School, Office, Bedroom, Public place
Voice operation guide languageEnglish (default)

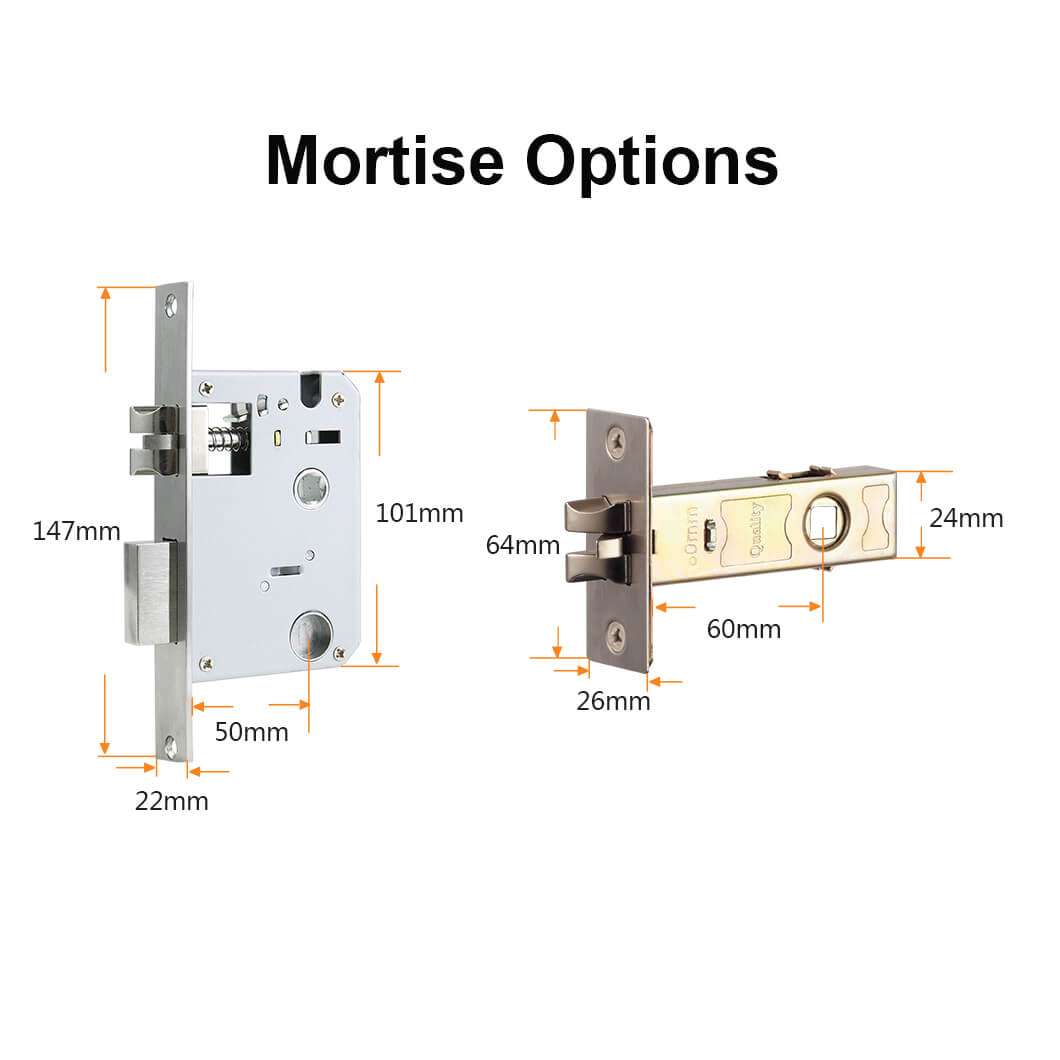

MortiseSingle latch, 50-50 double latch
Unlocking time delay2sec
Unlocking valid time8sec
Battery life150000 times
Offline Password capacity30
Password length4∼6 digits
Card capacity100
APP unlocking distancewithin 10 meters
Connection current2mA
Emergency power supplyUSB power supply
Working statusBroadcast status, no need to wake up
Working temperature-25℃∼65℃
Working humidity-20%∼95% RH
Storage temperature-20℃∼85℃
Storage humidity10%∼98% RH
Access solutionRFID card, password, mechanical key, Bluetooth APP
