YGS-8861FMC

YGS8861FMC Catalogue

YGS8861FMC Manual

YGS8861FMC Installation Diagram

YGS-8861FMC Installation

Overview

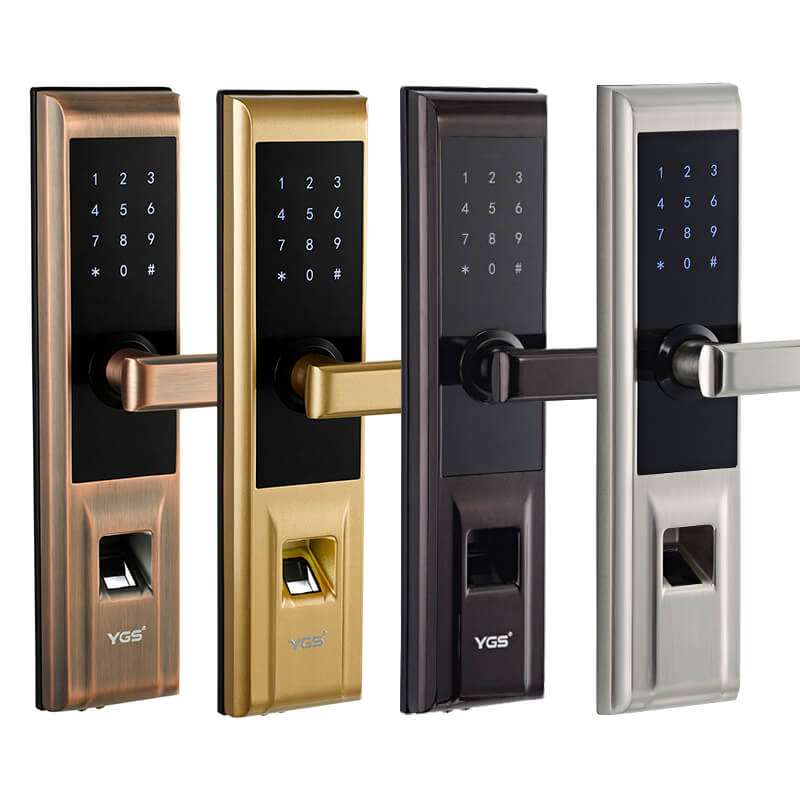

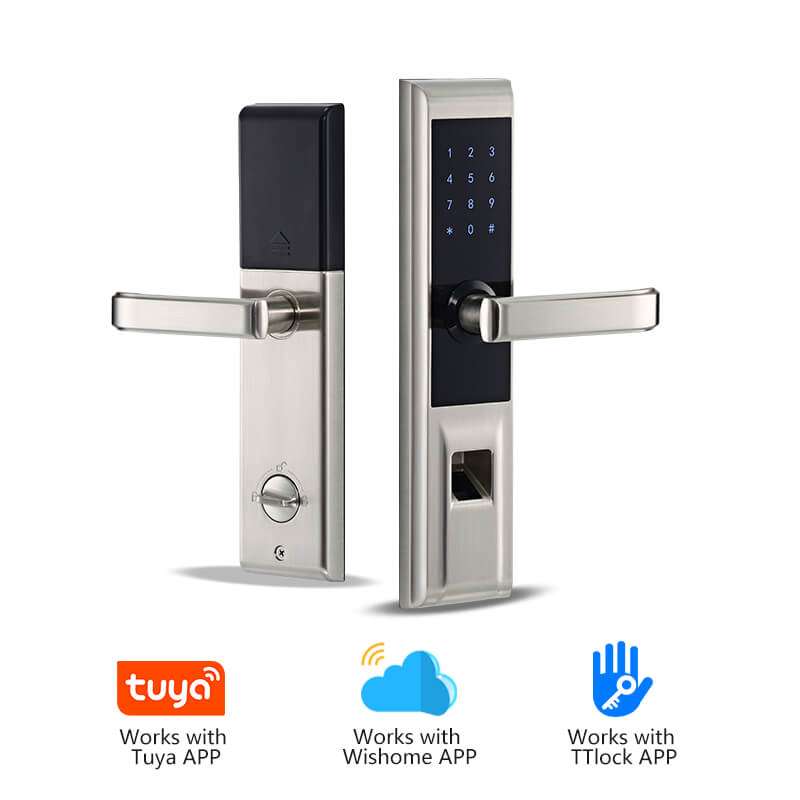

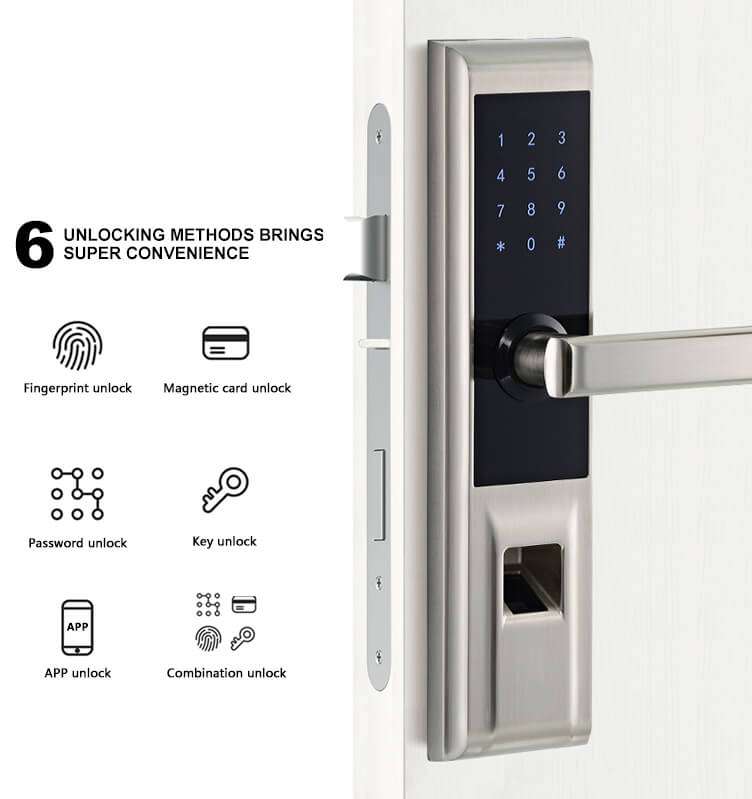

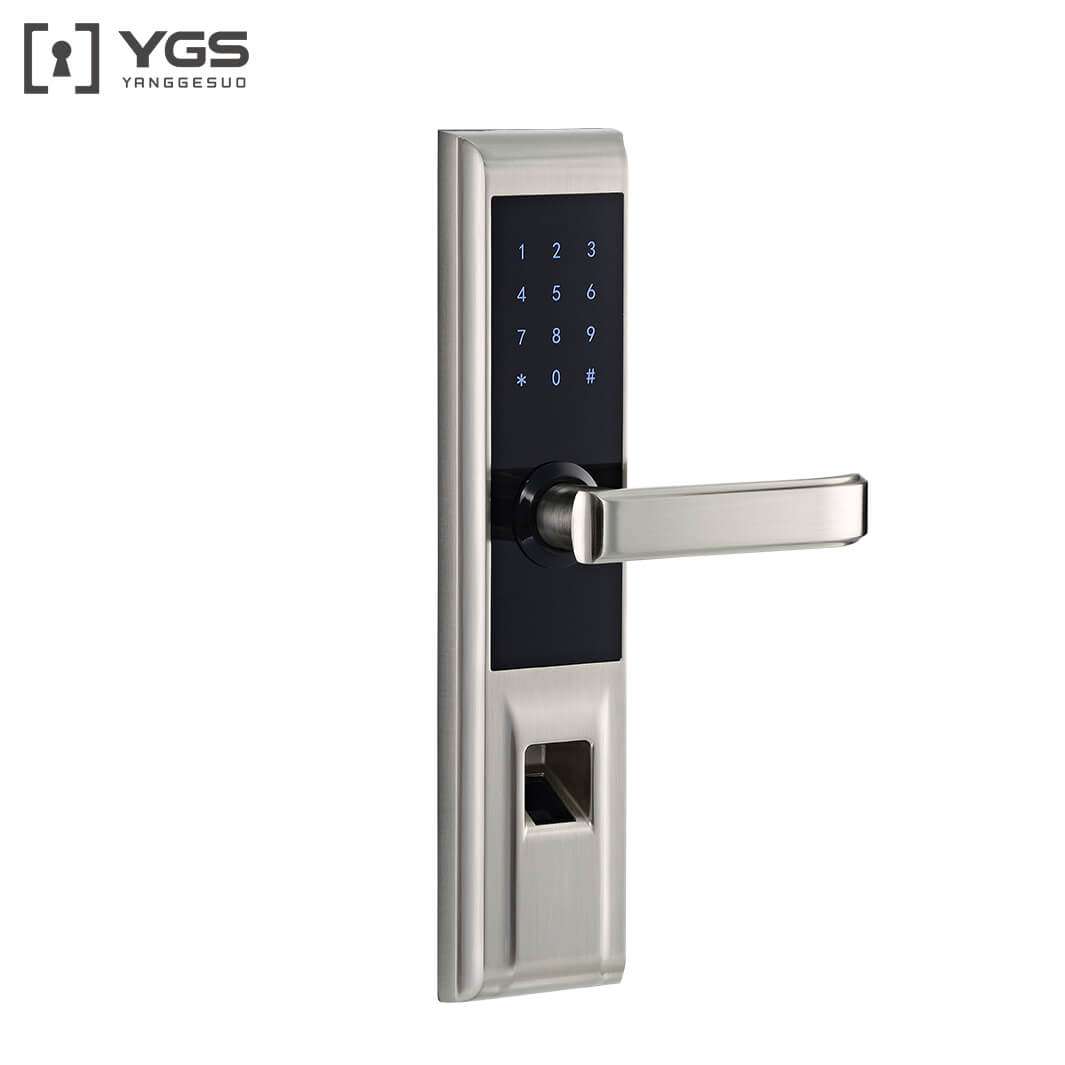

YGS8861FMC is a fingerprint lock with voice-guided feature, which makes operation very easy and quick. It uses the mechanical anti-theft mortise with one latch and multi security deadbolts, that allows users to lock the door from both indoor and outdoor. Meanwhile, YGS8861FMC has various approaches to open the door, such as with fingerprint, password, card and key. In urgent situation, you could use mechanical key or USB to unlock. All in all, YGS8861FMC presents the advanced electromechanical technology, which provides high home security and great convenience.

Function

1. User capacity: 899, passwords + cards + fingerprint.
2. A mechanical key can unlock in case of emergency.
3. Intelligent voice navigation is easy for lock setting.
4. Secure latch can protect from any break-in attempts.
5. Anti-tampering alarm, passage mode, low power alarm.
6. Total unlocking information: 88 unlocking information.
7. Temporary password is convenient for friend or relative’s visit.
8. System exits automatically after 15sec without any operation.
9. 6068 mortise compatible, it can be fit most of the wooden, metal doors.

Technical Specifications
