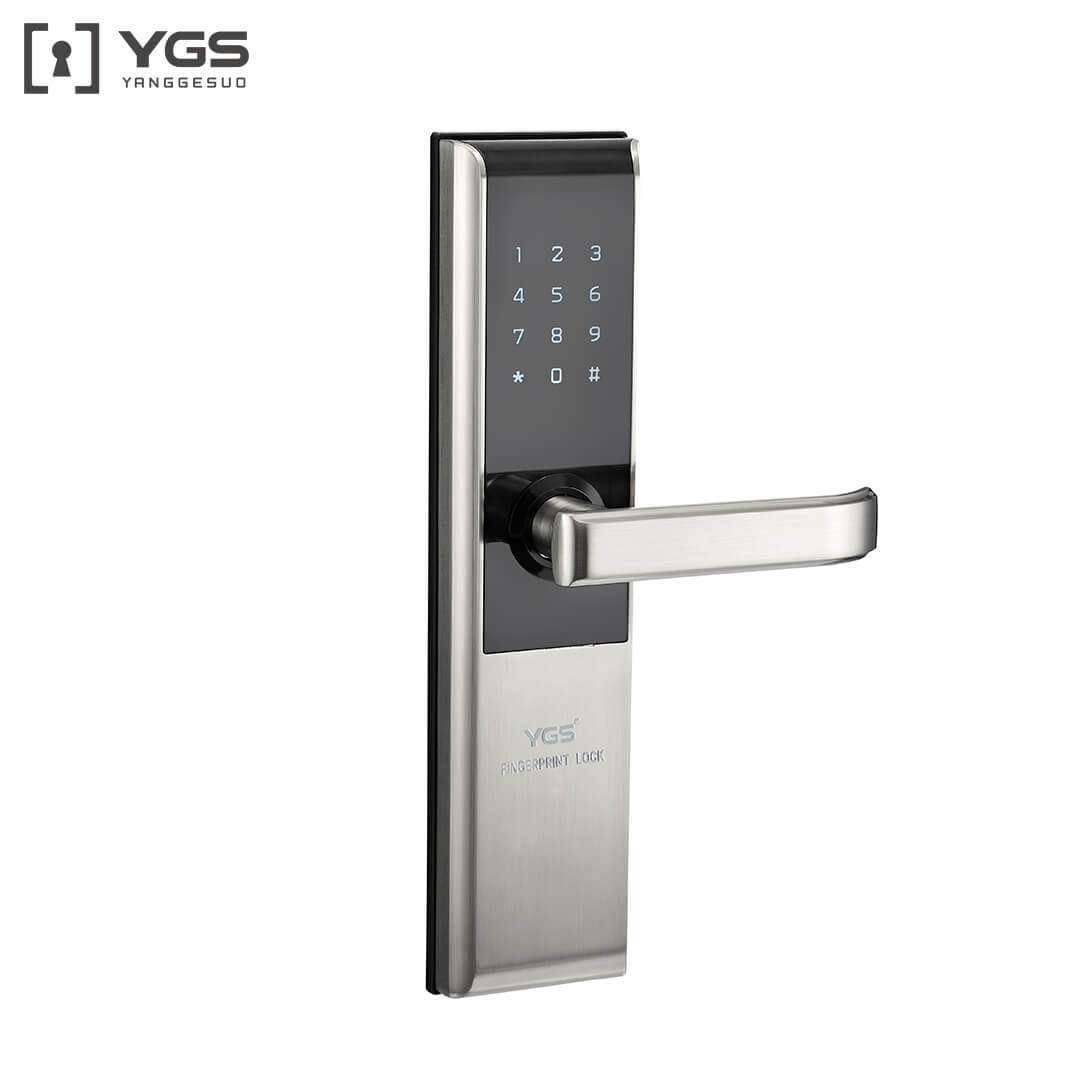

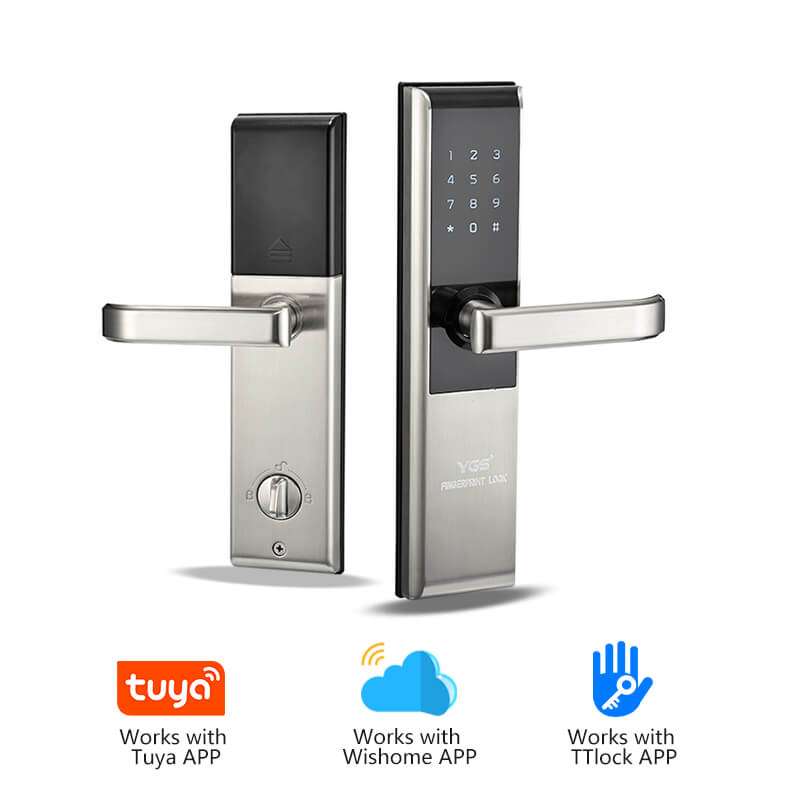

YGS8861 is a digital door lock includes: fingerprint, password, card, mechanical key, APP, 5-in-one-solution high tech product, provides comprehensive unlocking solution and experience for every members of your family.


YGS8861 Catalogue

YGS8861 Manual

YGS8861 Installation Diagram



YGS-8861 Installation

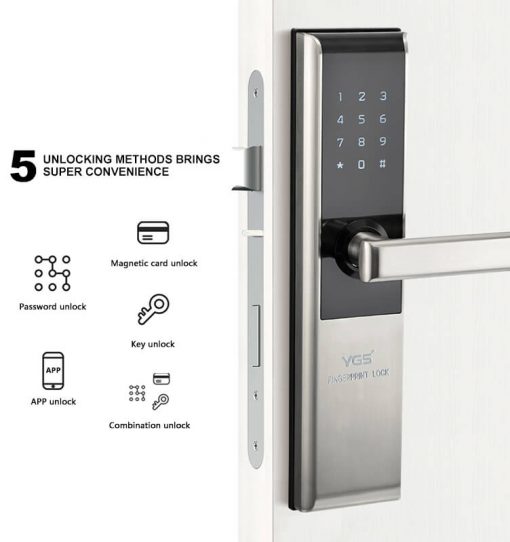

YGS8861 is a fingerprint lock with voice-guided feature, which makes operation very easy and quick. It uses the mechanical anti-theft mortise with one latch and multi security deadbolts, that allows users to lock the door from both indoor and outdoor. Meanwhile, YGS8861 has various approaches to open the door, such as with fingerprint, password, card and key. In urgent situation, you could use mechanical key or USB to unlock. All in all, YGS8861 presents the advanced electromechanical technology, which provides high home security and great convenience.




1. User capacity: 899, passwords + cards + fingerprint.
2. A mechanical key can unlock in case of emergency.
3. Intelligent voice navigation is easy for lock setting.
4. Secure latch can protect from any break-in attempts.
5. Anti-tampering alarm, passage mode, low power alarm.
6. Total unlocking information: 88 unlocking information.
7. Temporary password is convenient for friend or relative’s visit.
8. System exits automatically after 15sec without any operation.
9. 6068 mortise compatible, it can be fit most of the wooden, metal doors.



Technical Specifications

Mortise materialZinc Alloy Acrylic
Access solutionPassword/Mechnical key

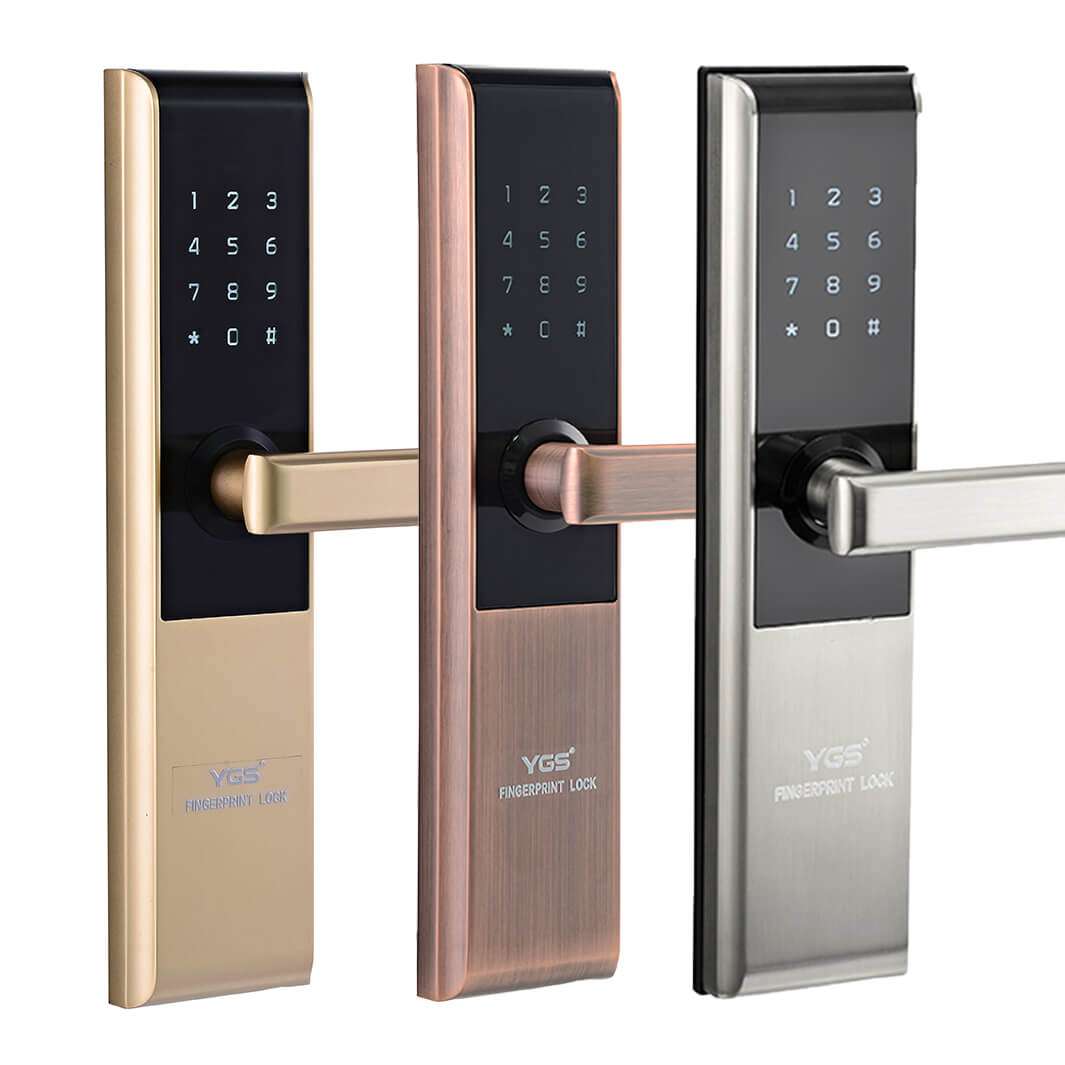

Available colorGold, silver, Copper
MortiseCenter Distance:68mm;Backset:60mm
Applicated Door Thickness35~110mm
Operating Temperature-15-55*C
Emergency PowerMicro-USB
Power6V(Alkaline AA battery x4)
Battery Life Time5000-6000 times
Pin code6-10 digits
Mechanical key3 keys
CardMifare 1((13.56MHz)
User capadity30 (PW)+993(CARD)
