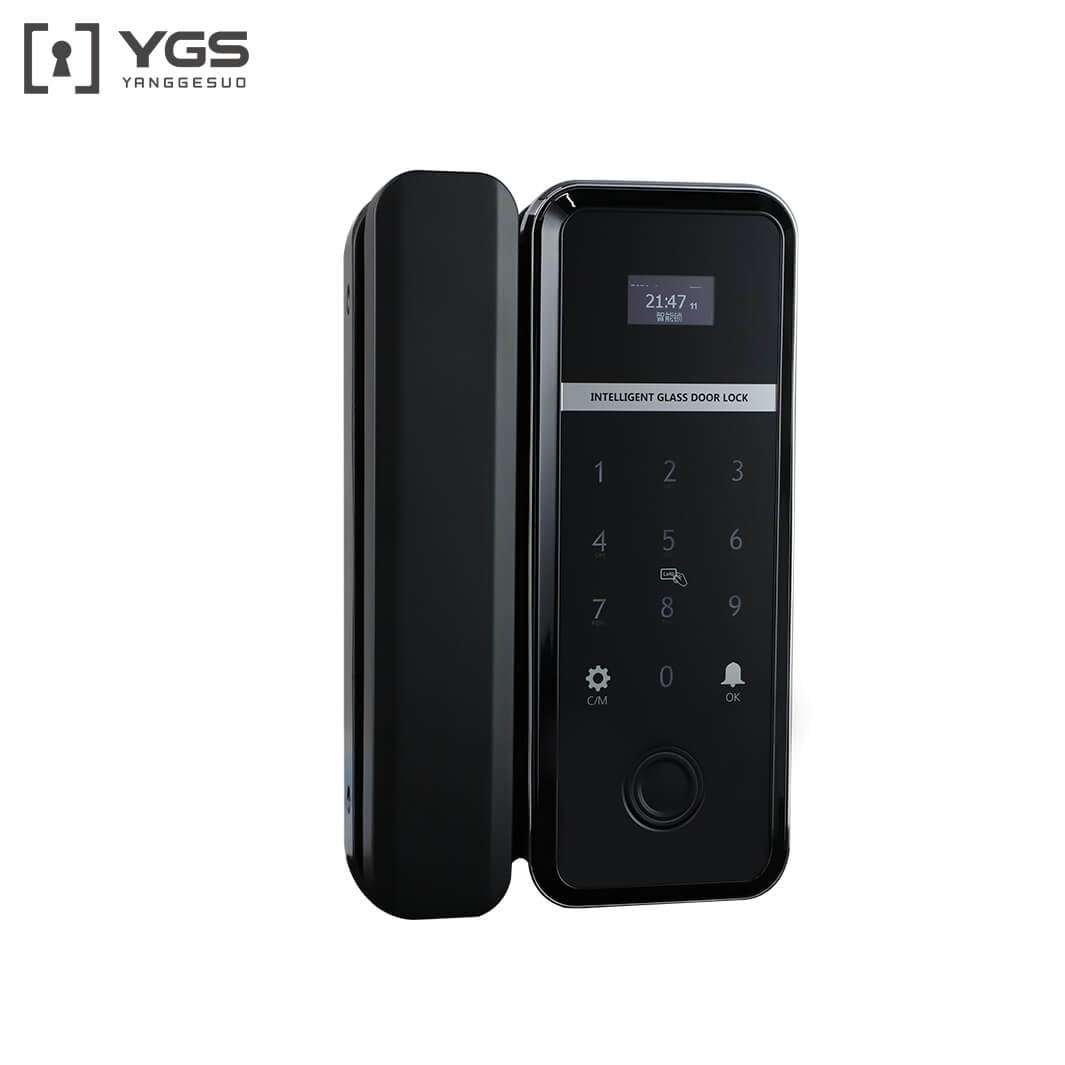

YGS628 is a digital door lock includes: fingerprint, password, card, mechanical key, APP, 5-in-one-solution high tech product, provides comprehensive unlocking solution and experience for every members of your family.


YGS628 Catalogue

YGS628 Manual



Glass Door Lock Installation



YGS628 is a fingerprint lock with voice-guided feature, which makes operation very easy and quick. It uses the mechanical anti-theft mortise with one latch and multi security deadbolts, that allows users to lock the door from both indoor and outdoor. Meanwhile, YGS628 has various approaches to open the door, such as with fingerprint, password, card and key. In urgent situation, you could use mechanical key or USB to unlock. All in all, YGS628 presents the advanced electromechanical technology, which provides high home security and great convenience.




1. FPC fingerprint enables unlocking within 1sec.
2. LCD screen displays every status of the door lock.
3. Operation voice makes operation easy and quick.
4. Touch screen keypad makes unlocking comfortable.
5. Access by M1 Card, Fingerprint, Pass code, or Wristband.
6. Hook latch or dual bars locking mechanism are optional.
7. Compatible with glass door with frame or without frame.
8. 4pcs AAA batteries are durable for over 10000 cycles (over one year).
9. Back-up USB external power supply interface, in case the power is dead.


Technical Specifications

MaterialAluminum alloy
Available colorBlack
Applicated Door Thickness10-12mm Glass Door
Working voltage4 pieces of 1.5V alkaline batteries
Working Curent Dynamic Power Consumption<200mA
Static Power Consumption< 55A
Consumption< 55A
Operating temperature-25’C~+65’C
Working environment temperature5-95%RH11
Emergency InterfaceUSB (Interface Voltage DC5V)
Password & Card management1000groups
Unlock record20000 pcs
