YGS-Z7A Installation
Overview
YGSZ7A is a fingerprint lock with voice-guided feature, which makes operation very easy and quick. It uses the mechanical anti-theft mortise with one latch and multi security deadbolts, that allows users to lock the door from both indoor and outdoor. Meanwhile, YGSZ7A has various approaches to open the door, such as with fingerprint, password, card and key. In urgent situation, you could use mechanical key or USB to unlock. All in all, YGSZ7A presents the advanced electromechanical technology, which provides high home security and great convenience.
Function
1. Automatic unlock and relock, easy for modern daily life.

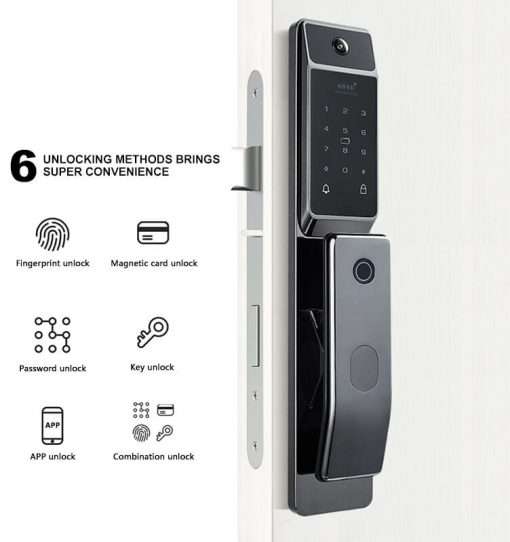

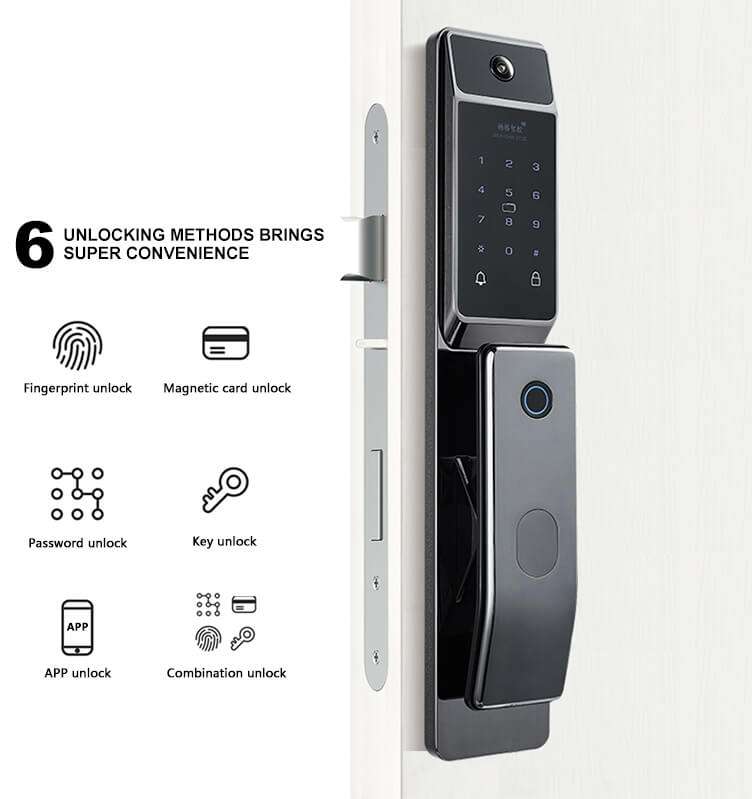

2. Access by APP, M1 Card, Fingerprint, Pass code, Wristband or key.
3. One-Touch-Access Biometric Fingerprint sensor on the reader.
4. Usmart Go APP enables remote unlock and user management easily.
5. Strong and secure Aluminum alloy lock panel, Anti-corrosion and firm.
6. 6068 mortise compatible, it can be fit most of the wooden, metal doors.
7.Back-up USB external power supply interface, in case the power is dead.
8. High resolution caHmera module enables to know the visitors without opening the door.
Technical Specifications
| Material | Aluminum alloy |

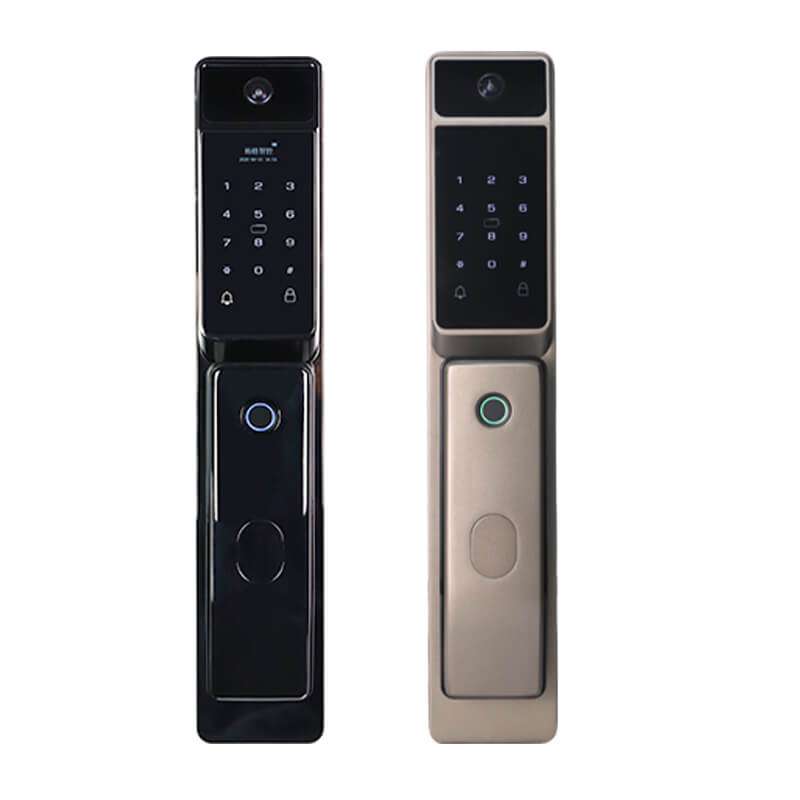

| Available color | Black, Golden |
| Unlock method | Bluetooth App, Card, Pass code, Fingerprint, Wristband or key |
| Power supply | Lithium battery |
| Battery life | Over 3000 times |
| Static current | < 70 uA |
| Dynamic current | <2 A |
| Storage temperature | -20 – + 60℃ |
| Storage humidity | 10-98% RH |
| Working temperature | -10- + 0℃ |
| Working humidity | 15-98% RH |
| Card reading distance | 0-5cm |
| Reading & writing time | <0.25s |
| Date keeping | Over 10 years |
| Reading & writing way | Non-touched closer induction |
