Expert Hotel Door Lock Installation Guide & Best Practices

Hotel door locks are one of the essential security devices in a hotel, properly installed can ensure the safety of guests and hotels. Compared to regular home door locks, hotel door lock installation is more complex because it involves hardware and software installation. Even minor errors can result in guest access cards not functioning properly. Moreover, they can make hotel door locks vulnerable to attacks and threats to hotel security.

Here, we present a professional guide for modern hotel smart door lock installation. Whether you have previous experience installing hotel door locks or not, we will provide you with detailed steps on how to install your hotel door lock correctly. This will ensure its stable operation in the long run. If you have any additional questions, please contact us. We are happy to communicate with you.

Understanding Your Hotel Door Lock System

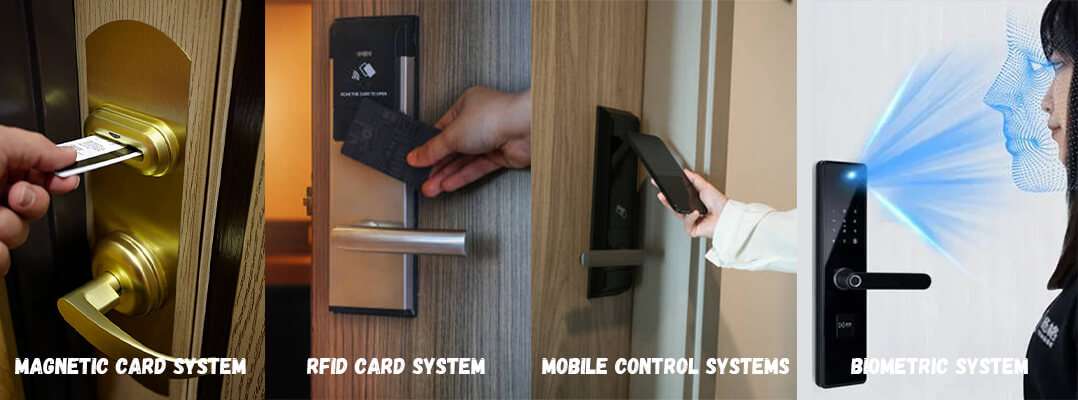

There are various types of hotel electronic lock systems, and different types use different advanced technologies for access. Therefore, their installation methods also vary. Therefore, before we begin this article, we will familiarize you with several common types of hotel door lock systems.

a) Magnetic stripe card system: It typically uses magnetic stripe cards to grant access permissions. These cards are issued and managed by the system. When the magnetic card is inserted into the magnetic card door lock, the lock recognizes the valid information within the card. Upon successful verification, the door lock will be unlocked. Magnetic stripe card systems are widely used, cost-effective, and relatively easy to implement.

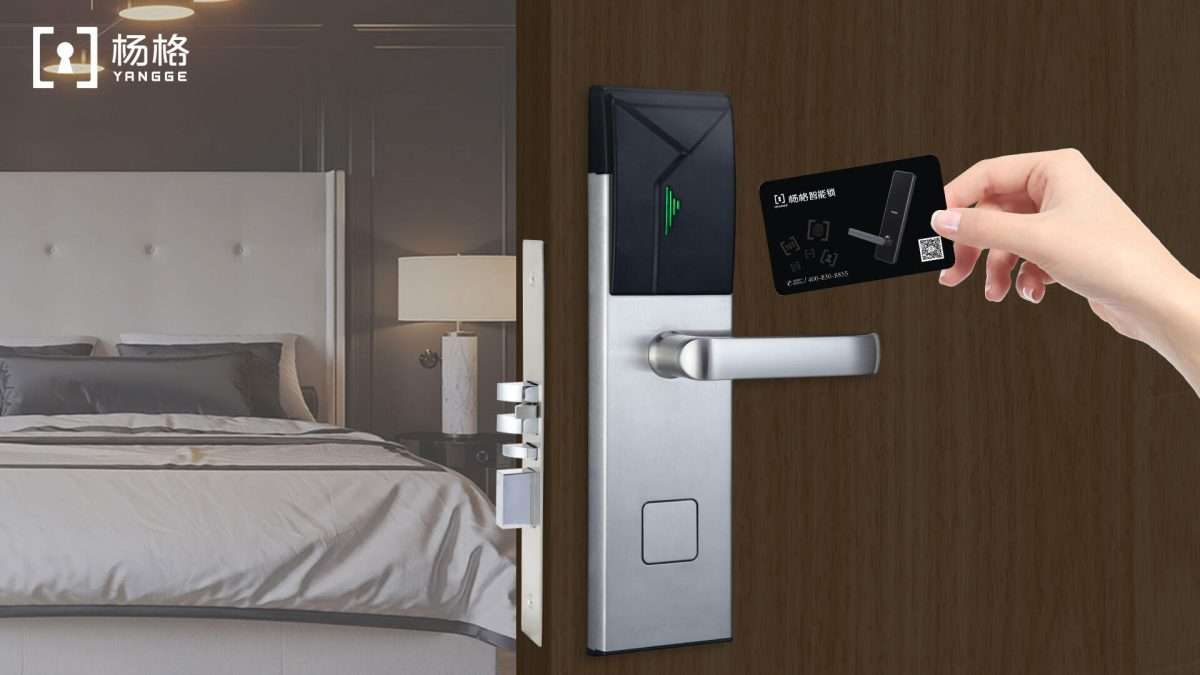

b) RFID proximity card hotel lock system: RFID cards employ contactless cards embedded with microchips to communicate with the door lock. These cards use proximity recognition, eliminating physical contact with the card reader.

When the key card or key fob is within a certain range of the card reader, the door lock detects it and grants access permissions. RFID lock systems provide guests with quick and convenient access and integrate with other hotel systems.

c) Mobile access control systems: With the emergence of smartphones, mobile access control systems have become cutting-edge solutions. Guests can use their smartphones as virtual keys, enabling smartphone control and contactless entry. Mobile devices unlock using Bluetooth, NFC, and WiFi unlock.

Users need to download the hotel application on their mobile phones and have the hotel room lock authorized and bound by hotel management. This process may involve mobile check-in, online payment, sending and receiving SMS messages on the phone, etc. Once these steps are completed, users can use their phones to access the hotel premises. They can enjoy their stay, bypass the front desk, and have a fully contactless guest experience.

d) Biometric system: Biometric door lock systems use unique biometric features such as fingerprints or face identification to grant access. These systems provide a high layer of security and eliminate physical keys or key cards. Biometric systems are becoming increasingly popular in upscale hotels as they ensure precise identification and prevent unauthorized access.

Installation Tools You May Need

Before installing your hotel door lock, prepare all the tools you may need to avoid delays in the installation process. Here are some common installation tools for your reference:

Screwdriver: Depending on the lock model, you may need a properly sized Phillips screwdriver or a flathead screwdriver. It is used to fasten and unfasten the screws to ensure secure the lock. Using an electric screwdriver can save you effort.

Drill: A drill creates holes for the locking mechanism, latch, and strike plate. Different lock models may require specific drill bit sizes, so make sure you have a compatible drill bit set. Improper installation may damage the lock or door.

Hole saw: Some locks may require larger holes for installing the lock body or latch bolt. Drill bit attachments for hole saws allow you to accurately create larger holes.

Chisel and hammer: A chisel can create recesses for the strike plate and latch bolt. It is used for shaping and smoothing the door edges to ensure proper alignment and fit. A hammer can remove excess wood from the door easier.

Tape measure: Accurate measurements are crucial for lock installation. Use a tape measure to determine precise positions for drilling holes and placing components.

Pencil or marker: Marking the correct positions for drilling and cutting is essential. Use a pencil or marker to make accurate reference points on the door.

Level: A level ensures proper alignment of the lock and strike plate. It can help you achieve a balanced and aesthetically pleasing installation.

Preparation For Installation

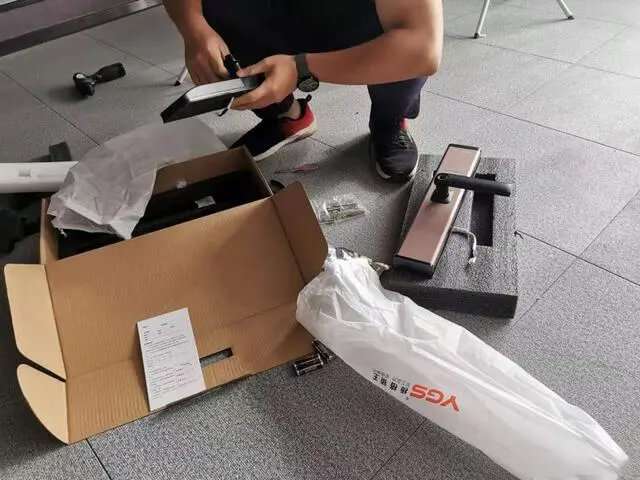

Check if your electronic hotel lock parts are complete:

The first thing to do after receiving the hotel smart lock is to open the package and check if all the parts are present. This is to avoid discovering any missing parts during the installation process, which could affect progress.

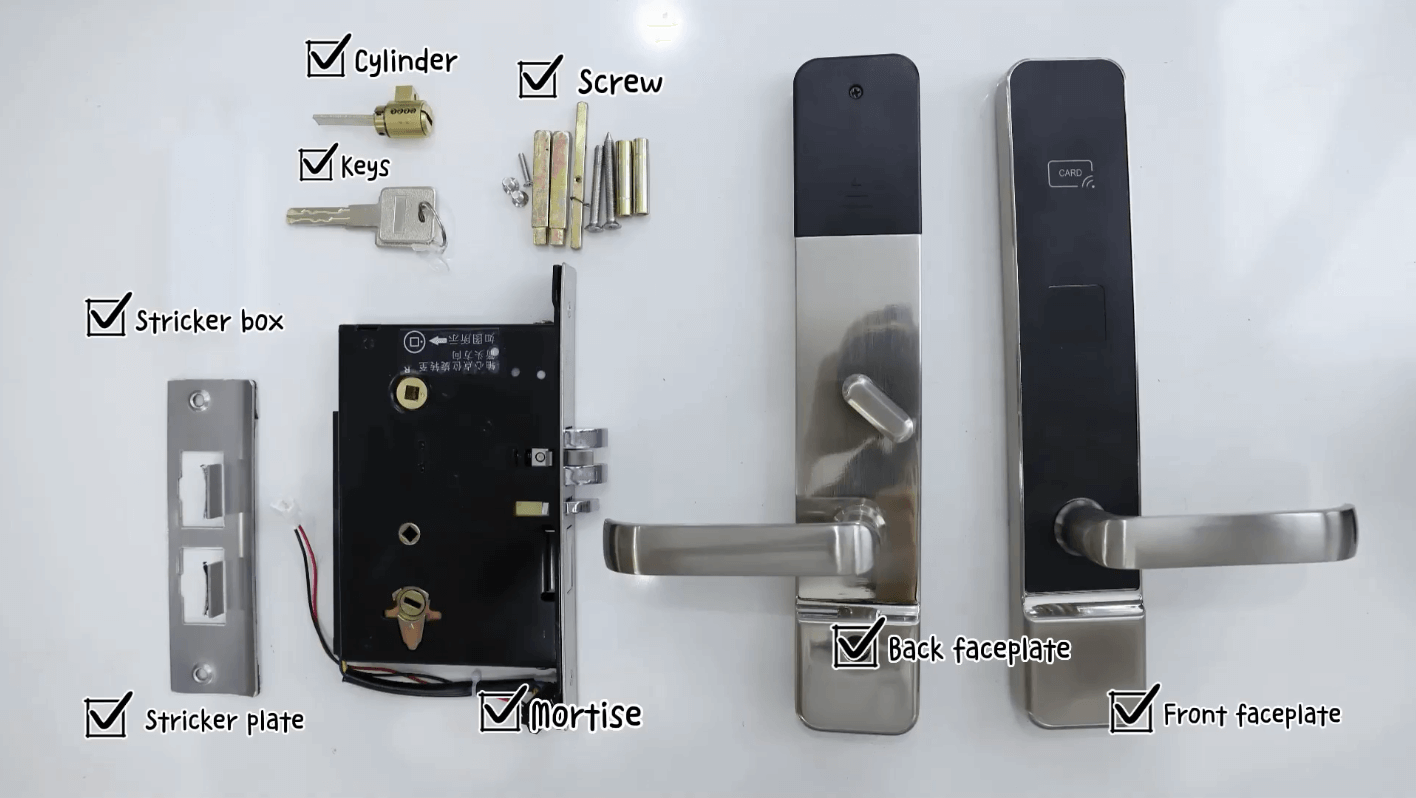

The package should typically include: front panel, back panel, drilling template, instruction manual, lock body, lock cylinder, screw accessories, strike plate, door box, and batteries. Please refer to the specific hotel lock system supplier’s instructions for a detailed check.

e.g.:

Check the installation guide from your smart lock supplier:

Before installing, carefully review the installation guide, installation diagrams, installation videos, and other related materials provided by the hotel smart lock supplier. This will ensure a smooth installation process. If you have questions, communicate with the vendor to clarify before proceeding with the installation.

Check if the installation site is suitable for the smart lock:

Confirm if the installation conditions at the site meet the requirements, such as the availability of power supply and completion of the renovation. Firstly, ensure a reliable power supply to ensure the proper functioning of the hotel smart lock.

To make sure that the smart lock can be installed correctly and seamlessly integrated with the door frame, confirm that the renovation work has been completed. This includes the installation of the door frame and the finishing of the door surface.

Also, ensure there are no obstacles at the installation location so that the smart lock’s sensors can function properly and provide accurate security protection.

Furthermore, networked locks also need to check network connectivity. Ensure the smart door lock can connect to the internet and be controlled and managed through a mobile device.

Step-by-Step Installation Guide

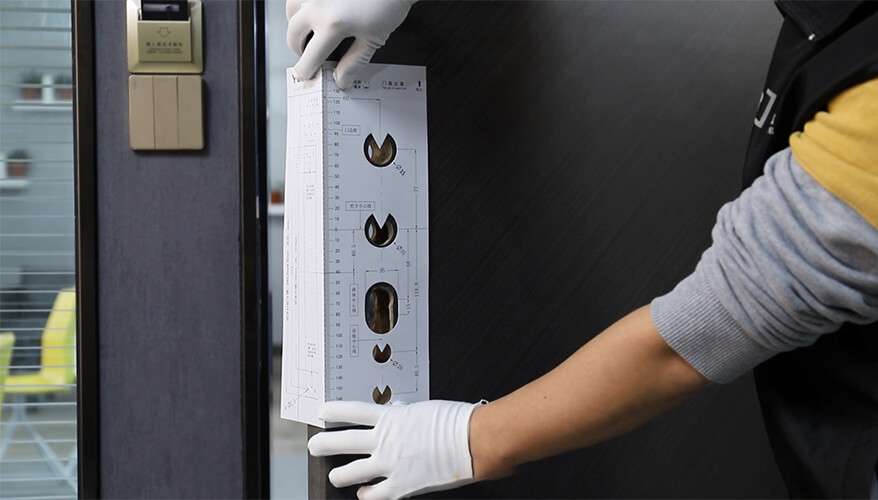

Drawing Lines

Draw corresponding lines on the front, back, and sides of the door according to the provided drilling template. (Please refer to the specific drawing file for the detailed drilling template.)

(1) Front Opening Line: Determine the installation height of the door lock and mark the door handle’s position at a height of 90 centimeters from the bottom of the door. For replacing old doors, mark according to the condition of the old door and draw the corresponding lines based on the drilling template.

(2) Back Opening Line: Draw lines on the back of the door following the same method.

(3) Side Opening Line: First, determine the center position of the door’s side, and then draw the opening line according to the drilling template.

(4) Door Frame Opening Line: In accordance with the drilling template, draw the opening line on the door frame according to the lock body’s position and height.

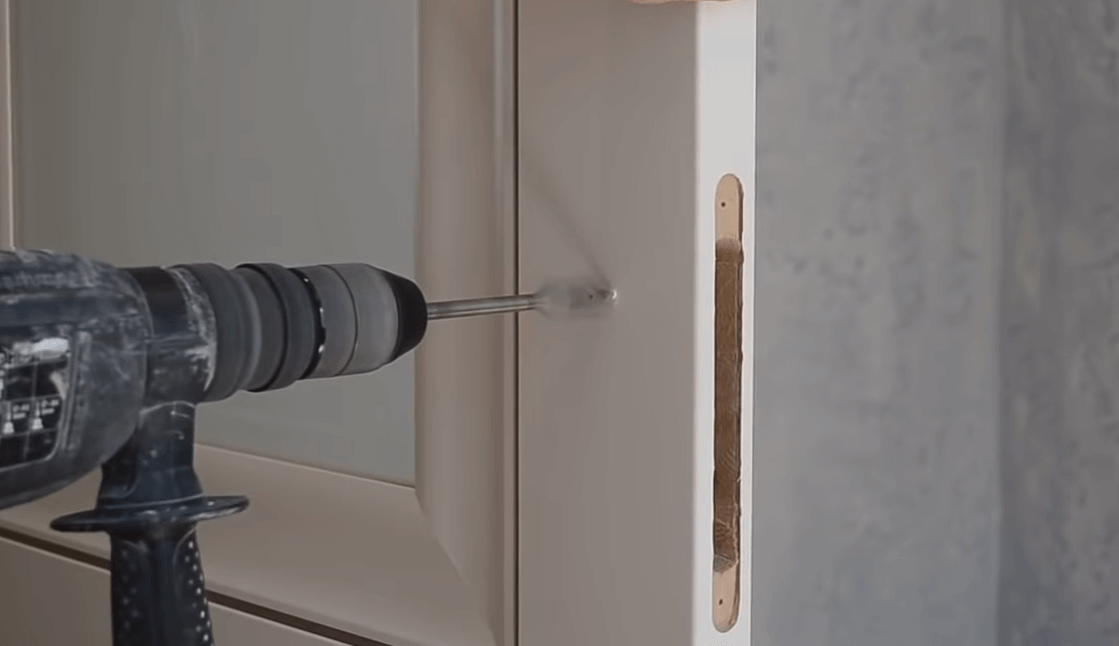

Opening Holes

(1) Front and Back Holes: Using the pre-drawn opening lines as a guide, use tools to create holes.

(2) Side Hole: The door side hole is the most critical step, and it must be done with caution. During the drilling process, pay attention to preventing fiber flying and ensure that the hole is the appropriate size and smooth. After drilling, use the lock cylinder to check for any inconsistencies, and make necessary adjustments if needed.

(3) Frame Hole: Strict requirements for the frame hole sizes are necessary to prevent loose fitting, which may make the door lock unstable

Installing the Lock

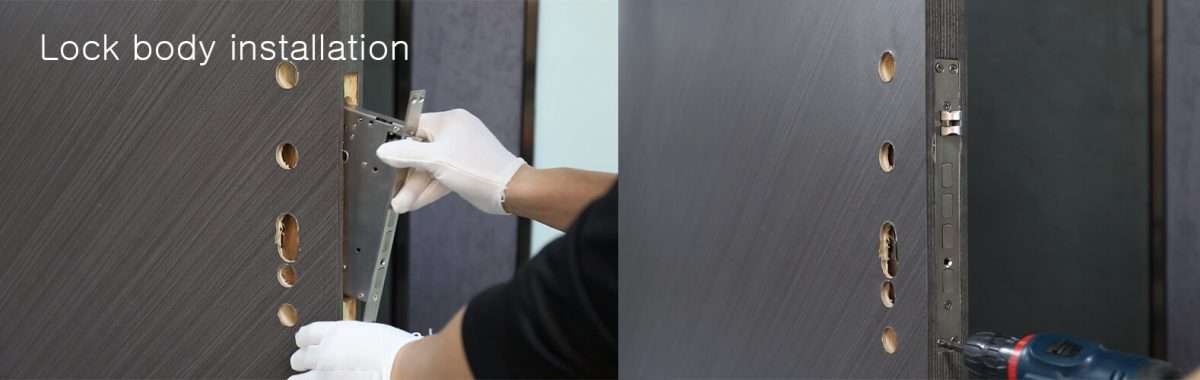

1. Lock Body Installation

Before installation, check if the lock body and lock cylinder are properly working. If any malfunctions are detected, replace them promptly. Pay attention to aligning the lock body axis with the arrow. Then place the lock body into the hole, let the connecting wires extend outside, and secure the lock body with screws. Install the strike plate and fix it with screws.

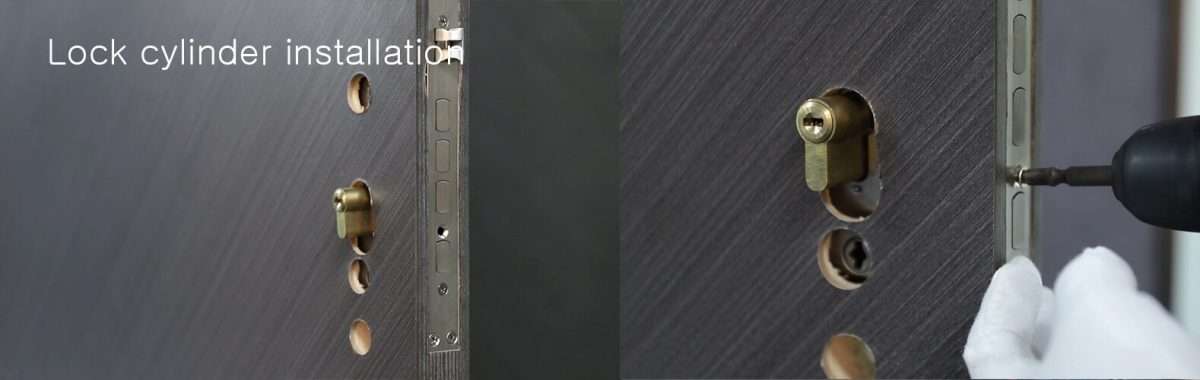

2. Installing the Lock Cylinder

Smart lock cylinders are mainly divided into rim cylinders and mortise cylinders, differing in their position and structure. Their installation methods also vary slightly. Rim cylinders need to be installed separately and secured with screws. Mortise cylinders can skip this step.

Note: During the installation process, verify that the lock body holes align with the installation holes. After installation, insert the key and rotate it to check if the cylinder is properly extended.

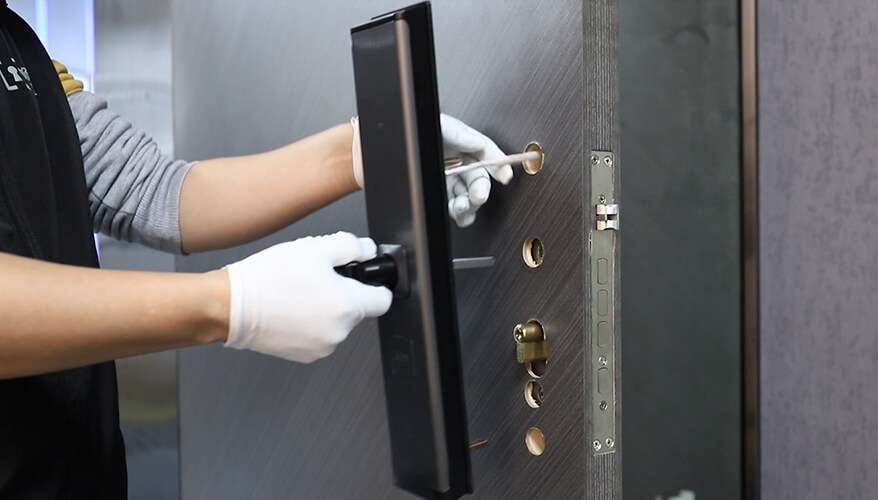

3. Front Panel Installation

Adjust the handle direction based on the door opening direction and secure it with handle screws. Tighten the fixing nut, install the lock cylinder, and secure it with screws. Insert the square bar, ensure proper wiring connection, and install the front panel onto the door.

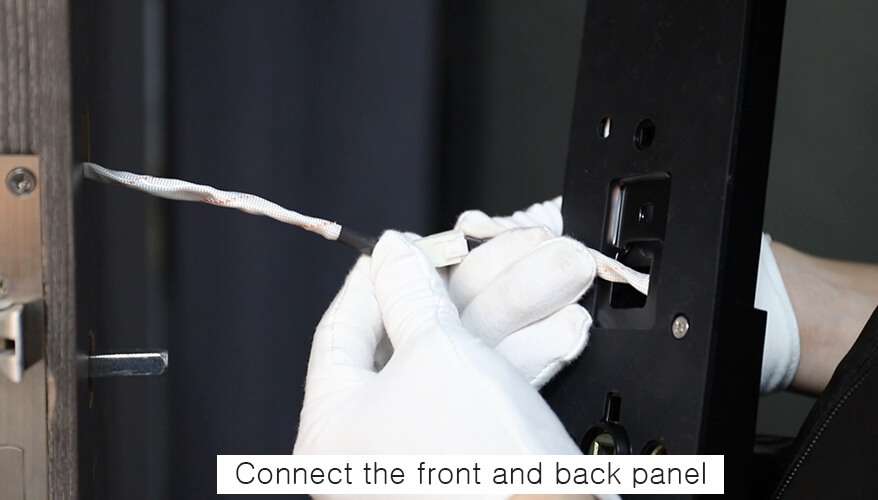

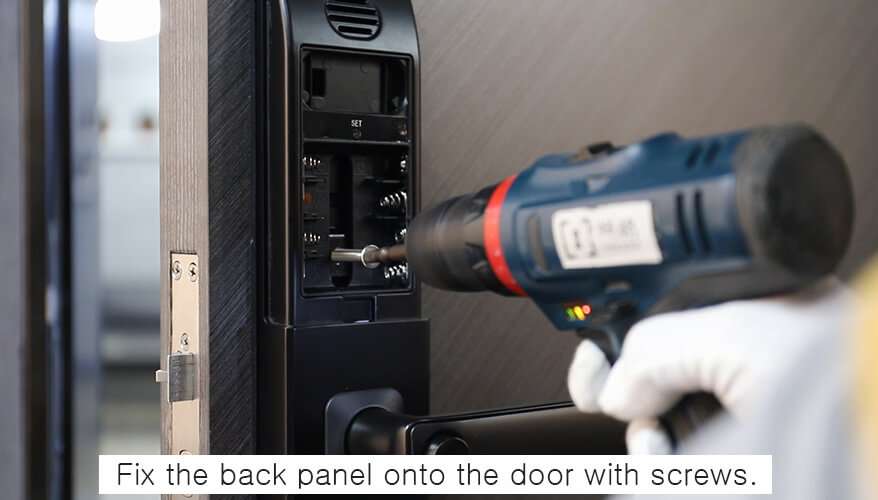

4. Back Panel Installation

Insert the handle square bar into the lock body. Insert the back panel, and connect the power wire plug to the back panel.

And route the wires into the hole, and fix the back panel onto the door with screws.

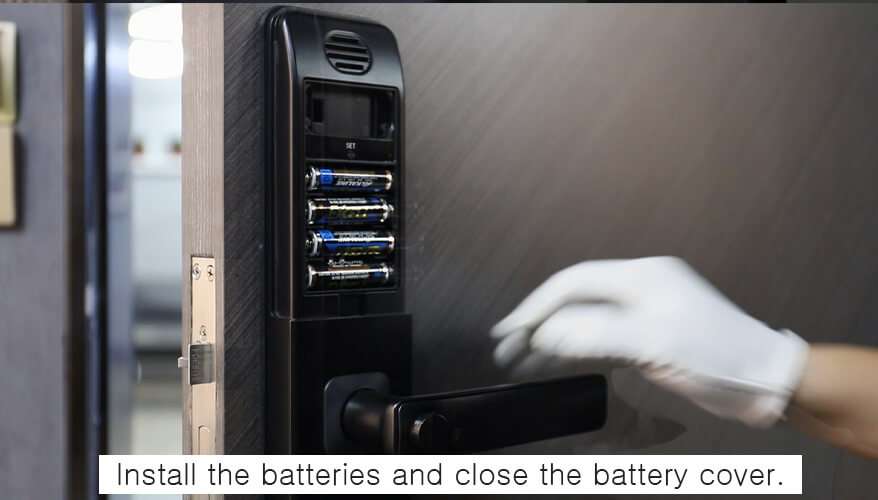

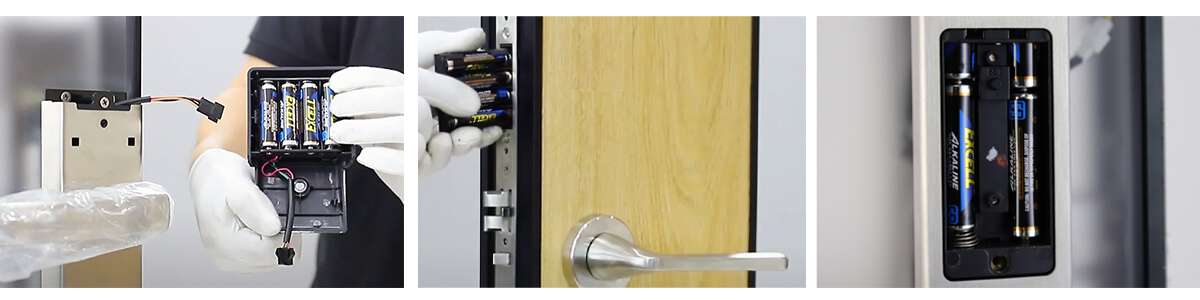

5. Battery and Battery Cover Installation

Different smart door locks have different battery box placement positions. For separate component hotel locks, batteries are usually placed inside the lock body. Therefore, install the batteries in advance when installing the door side plate.

For full-body hotel locks, the battery compartment is typically located on the back panel. Install the panel first and insert the batteries.

Note: When inserting the batteries, ensure the correct polarity.

6. Side Fixing Plate Installation

After drilling the frame hole according to the lock cylinder, install the plastic box and the side fixing plate.

Note: Adjust the position accordingly.

Other Considerations

• Determine the hole positions on the installation template based on the door opening direction. Different locks have different hole positions, so confirm which positions need to be marked before proceeding.

• Before installation, ensure the correct connection of wires, sockets, and plugs on the lock body. Determine the installation height of the lock, mark the appropriate positions using the installation template, and use a pencil to mark the hole positions. Ensure that the folded edge of the installation template is perpendicular to the door frame to ensure the lock body remains vertical after installation.

• After drilling the holes, clean any wood chips or debris inside the frame hole to prevent them from falling into the lock body during door movement.

• Keep the lock body clean and prevent abnormal substances such as wood chips or iron filings from entering the internal components, as they may cause short circuits or component jams.

• When installing the lock cylinder, ensure that its surface is in the same plane as the door frame, without protrusion.

• Ensure that the strike plate holes correspond to the position of the latch, to prevent loose or non-closing doors, and ensure that the deadbolt does not get stuck in the strike plate hole.

• When installing screws, tighten them properly to ensure there are no gaps between the lock body and the door.

• When connecting wires, ensure a correct and secure connection; otherwise, the hotel lock may not function properly.

Hotel Lock Function Settings

1. Download the hotel room management system.

2. Enter the hotel floor and room information, as well as employee information.

3. Issue authorization cards, time cards, and installation cards.

4. Set the basic information and time for the door lock to establish a connection between the software and the door lock. (When there are many hotel door locks, it can be cumbersome to use card authorization. In that case, synchronizing the information with a data collector and setting up door locks will be better.)

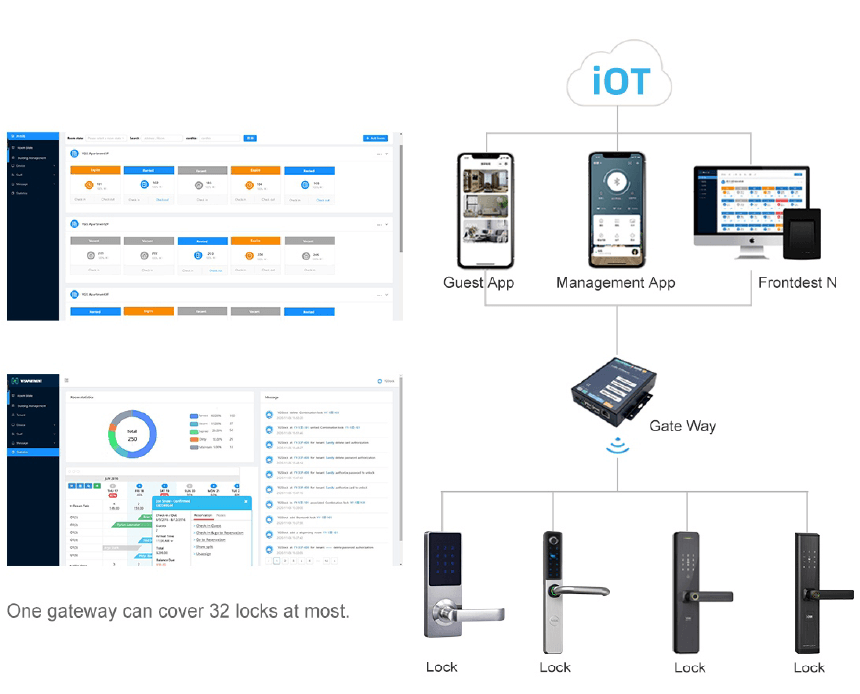

Once the hotel door lock information is set, key cards can be issued through the software. Advanced room management systems with Bluetooth hotel locks can even support remote authorization. This allows guests to unlock the door with their smartphones, achieving a “contactless check-in” experience.

5. Check the lock. When the door lock is installed correctly, the deadbolt and latch should pop out properly. The mechanical key should open the door without issues.

In addition, refer to the user manual to set up the relevant functions of the hotel door lock. Create guest cards and test all the related functions of the lock, including locking and unlocking the door/adjusting the lock time/recording door access/door lock alarms/and more. If there are any abnormalities, promptly troubleshoot and resolve the issues.

Common Challenges and Troubleshooting Tips

During the installation and operation of hotel door lock systems, certain challenges may arise. Being prepared to identify and resolve these challenges is crucial for maintaining a secure and efficient system. Here are some common challenges and troubleshooting tips to help you address them effectively.

1. Identifying and Resolving Installation Issues

a) Misalignment: If the door lock components are misaligned, the lock may not operate smoothly or engage properly. Check the alignment of the strike plate, latch, and lockset, and adjust them as necessary to ensure proper alignment and functionality.

b) Wiring Errors: Incorrect wiring connections can lead to malfunctioning or non-responsive door lock systems. Double-check the wiring connections, ensuring they align with the manufacturer’s instructions and diagrams. Correct any wiring errors to restore proper operation.

c) Power Supply Issues: If the hotel room lock system is not receiving power or is experiencing intermittent power supply, check the power source, such as batteries or electronic component connections. Ensure that power sources are functioning correctly and replace batteries or address electrical issues as needed.

d) Communication Errors: In systems involving network or wireless communication, communication errors can occur. Check network connectivity, ensure proper signal strength, and troubleshoot any network or communication-related issues to restore proper functionality.

2. Dealing with Door Lock Malfunctions

a) Keycard Recognition Issues: If the door lock system is not recognizing or accepting keycards, verify that the keycards are properly encoded and not damaged. Clean the keycard reader and check for any debris or obstructions that may be interfering with keycard recognition.

b) Jammed Latch or Lockset: A jammed latch or lockset can prevent the door from opening or closing properly. Check for any obstructions or debris in the latch mechanism, clean or lubricate the moving parts, and make any necessary adjustments to resolve the jamming issue.

c) Battery depletion: In the case of a battery-powered door lock system, unexpected battery depletion may occur. Regularly check the door lock battery level and the condition of the battery compartment. You can directly monitor the door lock status through the hotel lock system management software and promptly replace low-power batteries. Regularly inspect the inside of the battery compartment to avoid battery leakage, which could affect its functionality.

d) Mechanical wear: Over time, the mechanical components of the door lock system may experience wear and tear. Periodically inspect the system for signs of damage or worn-out parts. Replace any damaged components to prevent further issues and ensure optimal performance.

Please remember, if you encounter challenges beyond your expertise, consult the manufacturer’s technical support. You can also seek professional lock installation services or maintenance technicians experienced in handling door lock systems.

Best Practices For Hotel Door Lock Installation

In the installation of hotel door locks, the choice of lock type is crucial and can be divided into two main categories: full-body locks and separate component locks. Different types of door locks have different installation methods. Now, we will take YGS-featured hotel locks as an example to demonstrate some installation practices for both split locks and integrated locks.

YGS-9905 Installation

YGS-9937 Installation

Feel free to watch the above videos to learn about the installation methods of YGS hotel door locks and to gain insights into best practices. We are committed to providing high-security hotel electronic door lock systems for your hotel and offering professional guidance for hotel door lock installation to ensure both the security and convenience of your hotel.
