YGS-6676 Installation
Overview
YGS6676 is a fingerprint lock with voice-guided feature, which makes operation very easy and quick. It uses the mechanical anti-theft mortise with one latch and multi security deadbolts, that allows users to lock the door from both indoor and outdoor. Meanwhile, YGS6676 has various approaches to open the door, such as with fingerprint, password, card and key. In urgent situation, you could use mechanical key or USB to unlock. All in all, YGS6676 presents the advanced electromechanical technology, which provides high home security and great convenience.
Function
1. Compatible with various mortise to fit 99% doors.
2. Solid stainless steel material, durable for long time service life.
3. Escutcheon and handle material are all of No.304 stainless steel plate.
4. Unique stylish thin panel, 300*45mm, it can be fit most of the wooden, sliding doors.
5. PCB sealed with silicon encapsulated treatment for high humidity environments.
6. Software available in several languages. Standalone mode or centralized database.
7. Ideal to replace old locks.It covers the brands of many models of locks on the market.
8. Audit system with capacity to register up to 1000 events including openings with emergency keys.
9. EEPROM memory to maintain the information and configuration even if the batteries are removed.
Technical Parameters
| Material | No.304 Stainless Steel |

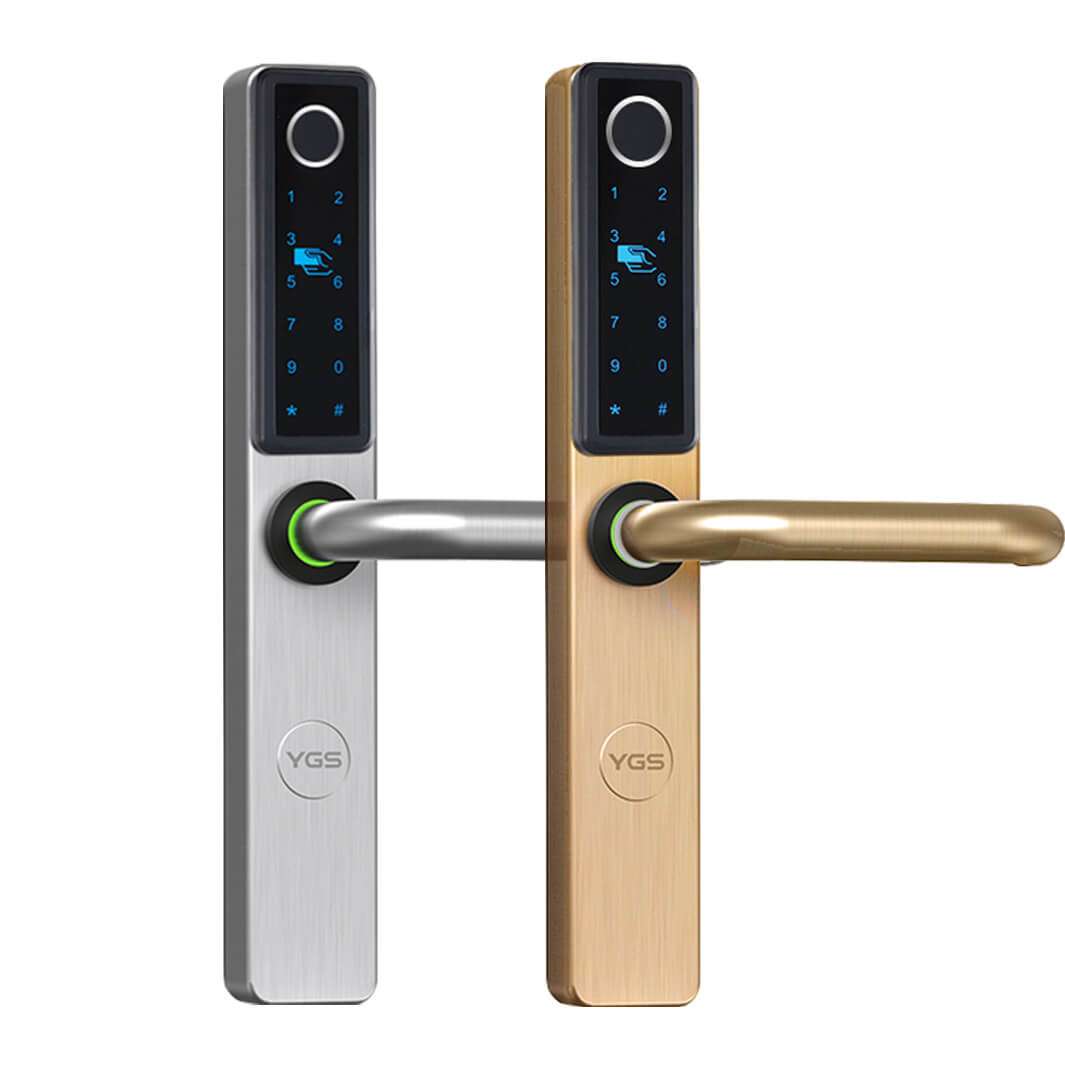

| Available color | Silver, Gold |

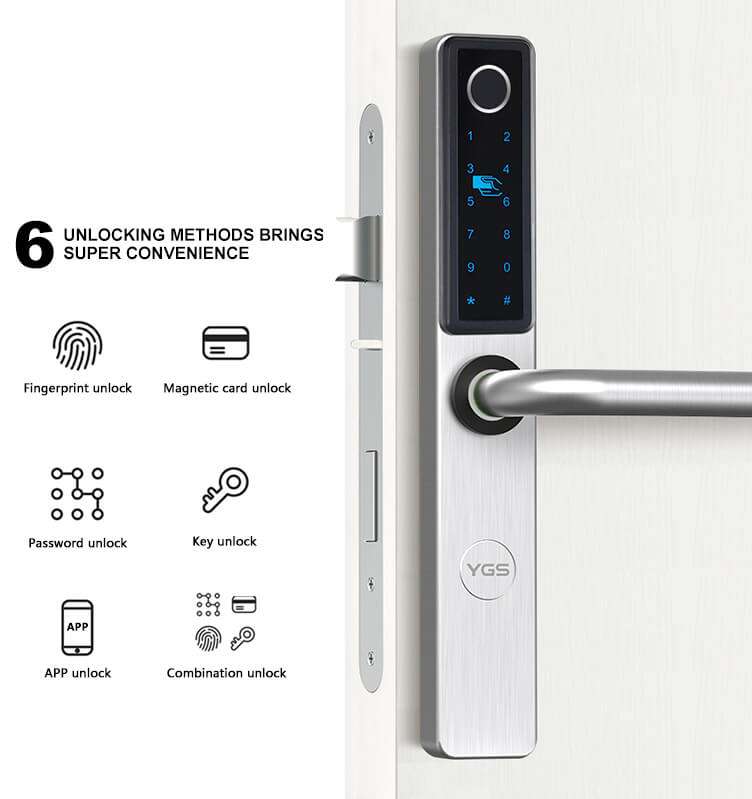

| Unlock method | Card, Pass code, Fingerprint, smartphone or key |
| Power supply | 4pcs 1.5V AAA batteries |
| Battery life | >15000 times |
| Static current | < 20 uA |
| Dynamic current | <150 mA |
| Storage temperature | -20 – + 58 °C |
| Storage humidity | 10-60% RH |
| Working temperature | -20 – + 58 °C |
| Working humidity | 10-60% RH |
| Detection distance | 0-5cm |
| Data storage time | Over 10 years |
| Applicable chip | Mifare-1 card(13.56MHz) |
| Successful rate of unlocking | 100% |
| Low voltage alarm critical point | 4.8V |
| Mechanical key type | Key alike/ Key different |
| Required door decorative edge | Overr 130mm to door edge |
