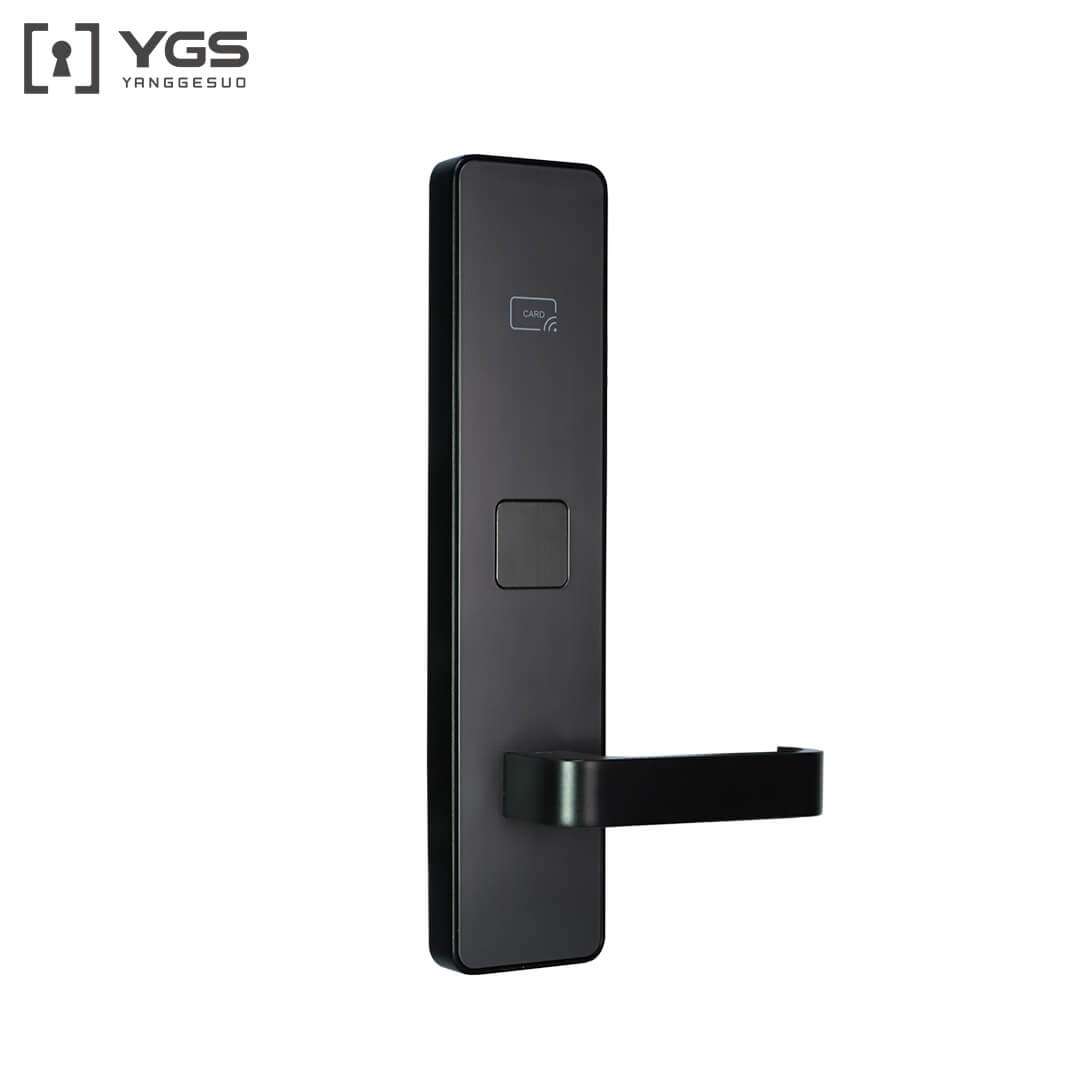

YGS-9953

IMD faceplate with CNC treatment makes every lock edge straight and clear, very high classic to upgrade hotel image. The aluminium profile lock frame and iron base provide higher level of durability and rigidity than stainless steel material lock.



YGS9953 Catalogue





Technical Specifications

MaterialAluminum alloy

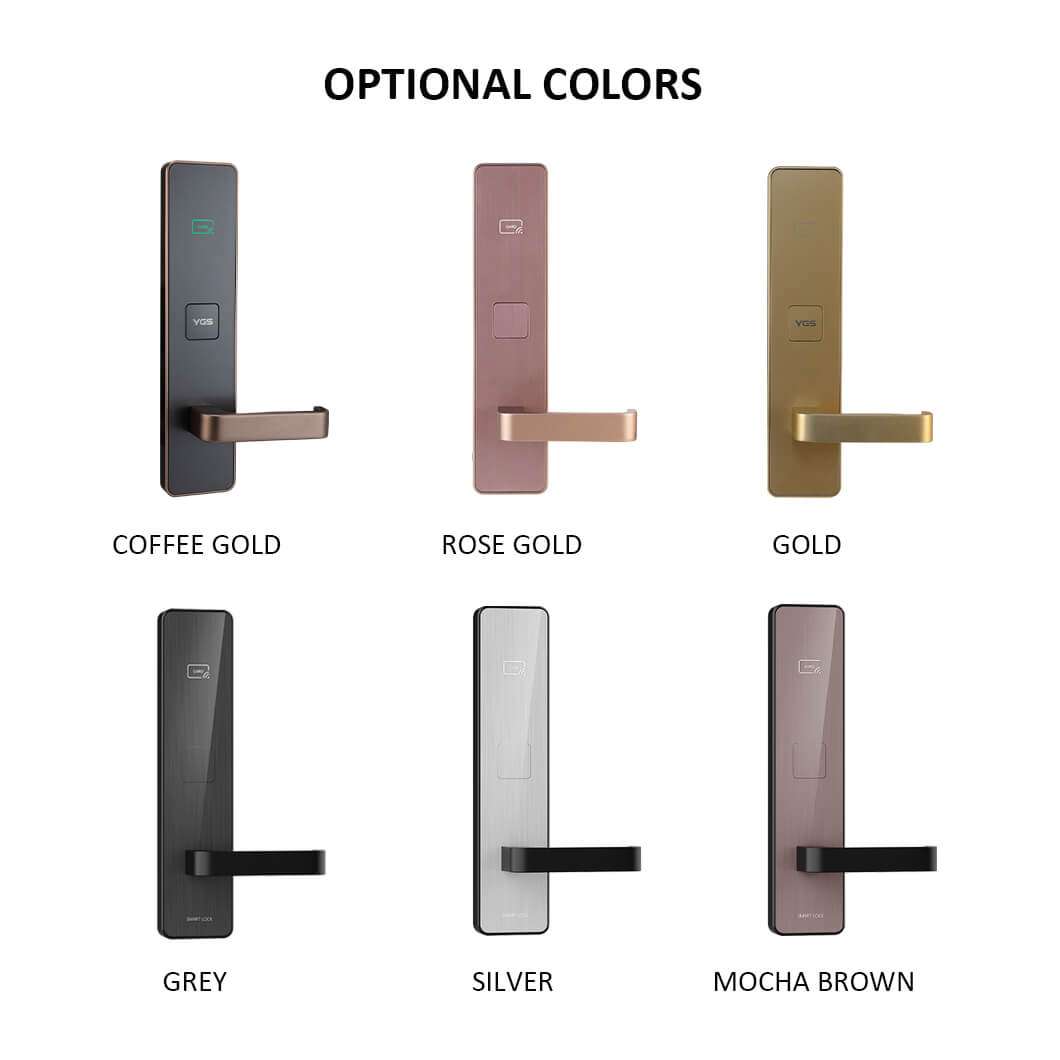

Available colorIMD in grey/silver/gold
Power supply 4 AAA alkaline batteries
Battery life Over 15000 times
Static current< 40 μA
Dynamic current<150 mA
Storage temperature-20- + 65℃
Storage humidity10-95% RH
Working temperature-25- + 65℃
Working humidity10-95% RH
Card reading distance0-5cm
Reading & writing time<0.25s
Date keepingOver 10 years
Applicable chipMifare (13.56Mhz)
