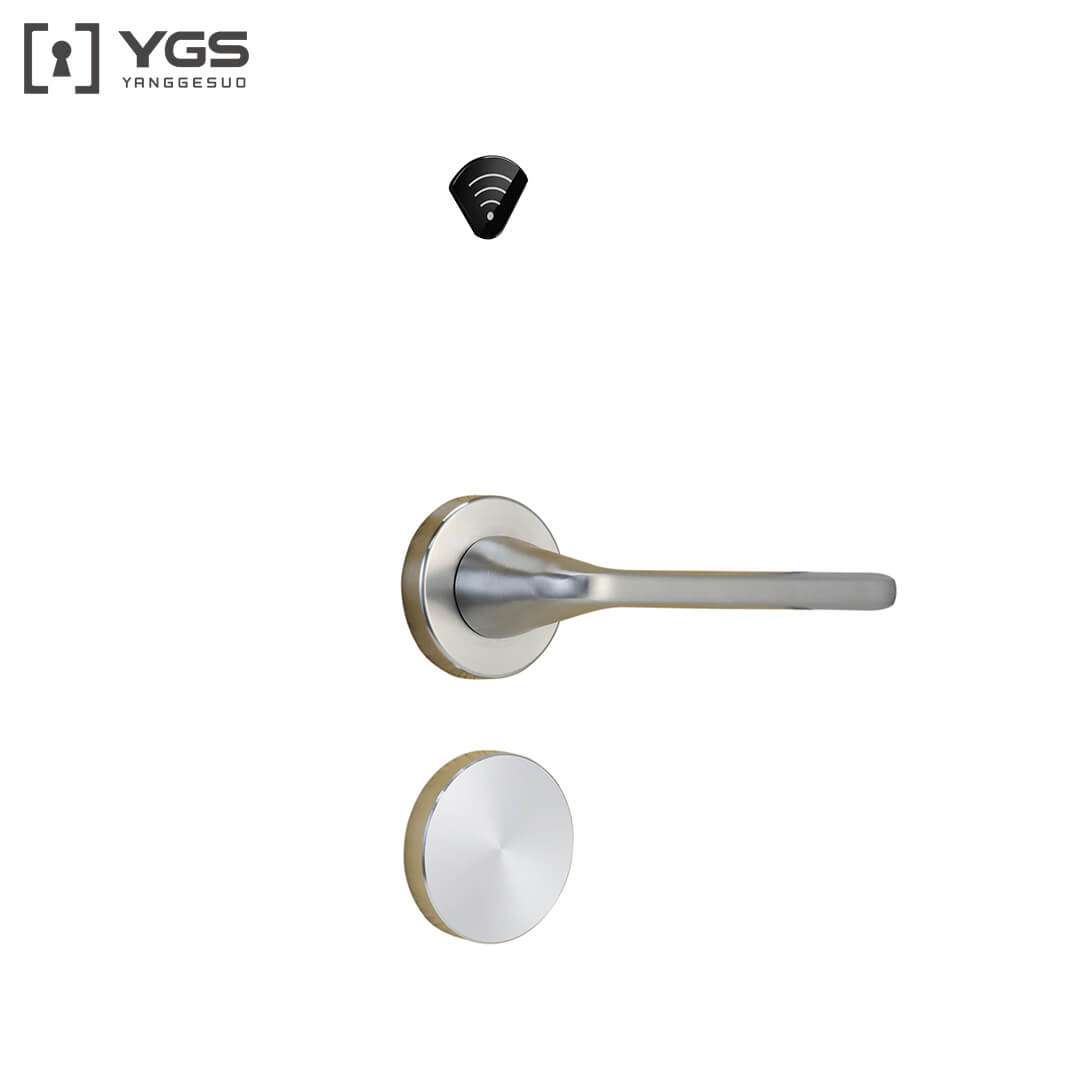

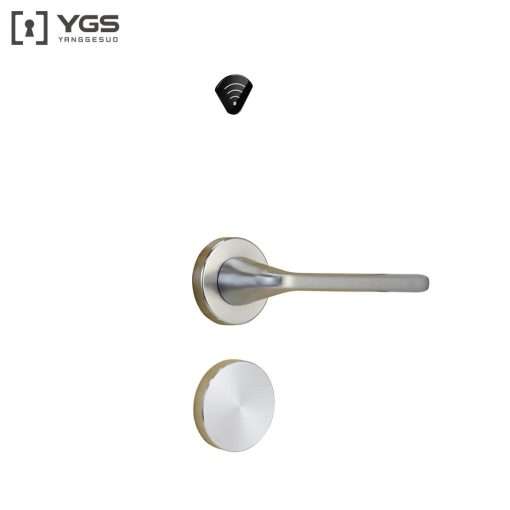

YGS-9909 Installation
Features

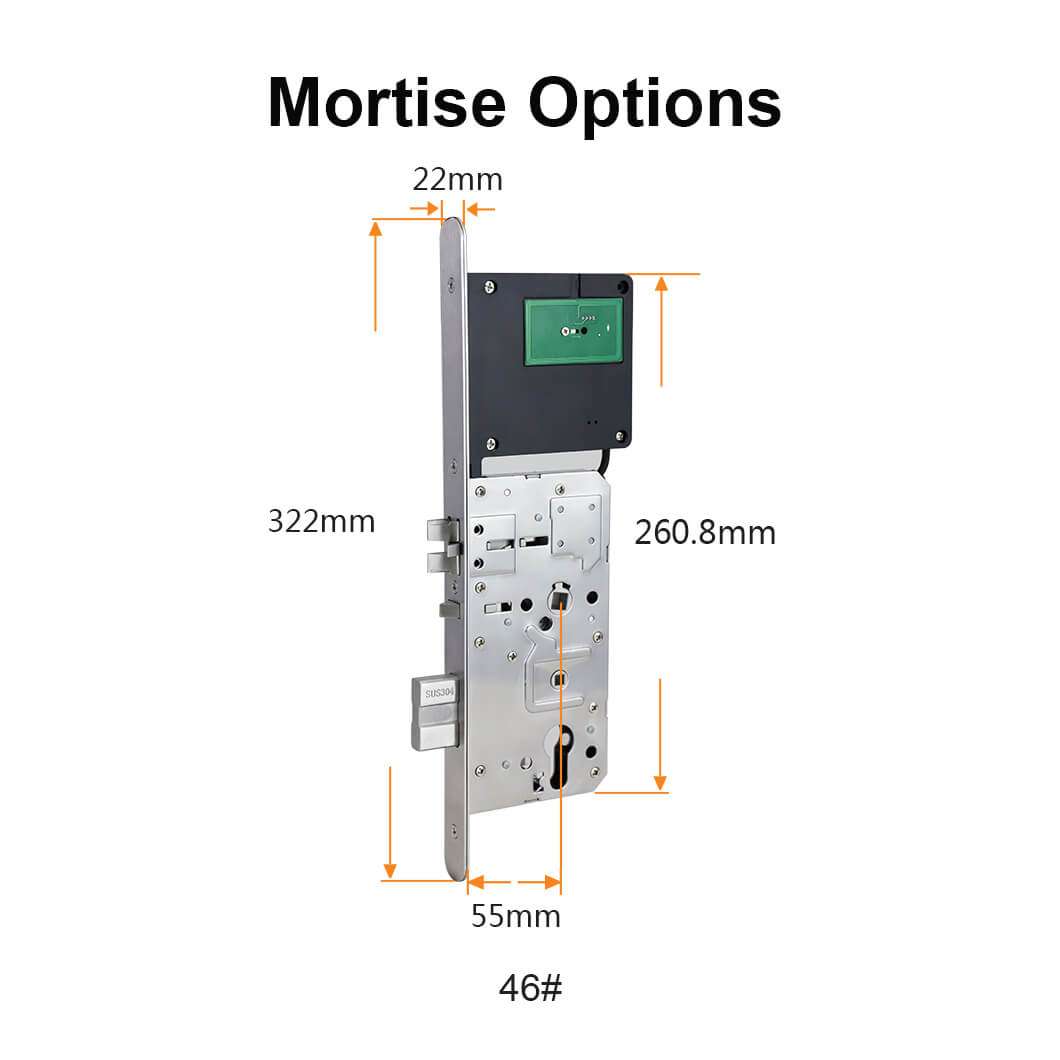

※ Advanced split-type induction card lock design seamlessly incorporates the PCB board and battery box into the lock body.
※ Customizable handle design for a varied appearance.
※ Utilizes the Mifare-1 chip from the Dutch company PHILIPS, ensuring robust encryption and high-security performance. Enables hotel one-card functionality.
※ Stores up to 1000 unlocking records with a high-capacity storage chip (mechanical key unlocking records not included).
※ Audible and visual alerts activate when the battery drops below 4.7V during unlocking. The lock can still be operable for approximately 100 times.
※ Features a backup mechanical key with a Class-C lock core, providing emergency access in case of power failure.
※ False lock alarm: Automatically triggers an alarm if the latch fails to fully engage the locked position.
※ Free handle design with an explosion-proof, pressure-resistant structure for robust and durable performance.
Technical Specifications
| Material | Zinc alloy |
| Finish | Electroplating + oil sealing |
| Power supply | 4 AAA alkaline batteries |
| Battery life | Over 15000 times |
| Static current | < 40 uA |
| Dynamic current | <150 mA |
| Storage temperature | -20- + 70℃ |
| Storage humidity | 10-98% RH |
| Working temperature | -25- + 70℃ |
| Working humidity | 15-95% RH |
| Card reading distance | 0-5cm |
| Reading & writing time | <0.1s |
| Date keeping | Store the last 1000 unlocking records |
| Applicable chip | Mifare 1 (13.56Mhz) |
| Reading & writing way | Non-touched closer induction |
| Unlocking way | Cards/Emergency mechanical key |
