YGSH is a digital door lock includes: fingerprint, password, card, mechanical key, APP, 5-in-one-solution high tech product, provides comprehensive unlocking solution and experience for every members of your family.



YGS-H Catalogue

YGS-H Manual

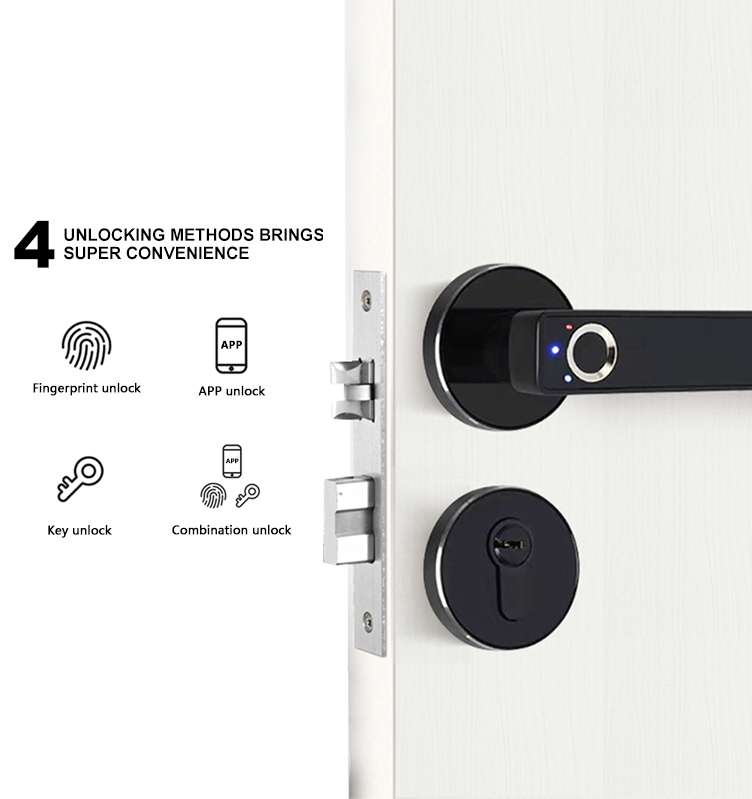

YGSH is a fingerprint lock with voice-guided feature, which makes operation very easy and quick. It uses the mechanical anti-theft mortise with one latch and multi security deadbolts, that allows users to lock the door from both indoor and outdoor. Meanwhile, YGSH has various approaches to open the door, such as with fingerprint, password, card and key. In urgent situation, you could use mechanical key or USB to unlock. All in all, YGSH presents the advanced electromechanical technology, which provides high home security and great convenience.




1. Reversible free style handle.
2. TUYA APP version is available to choose.
3. Easy for old mechanical door lock replacement.
4. Built-in lithium battery is durable for long time use.
5. Compatible with various mortise to fit 99% doors.
6. Single handle or handle+cylinder cover designs are optional.
7. One-Touch-Access Biometric Fingerprint sensor on the reader.
8. Access by Fingerprint or key (APP and passwords are optional).
9. Back-up USB external power supply interface, in case the power is dead.

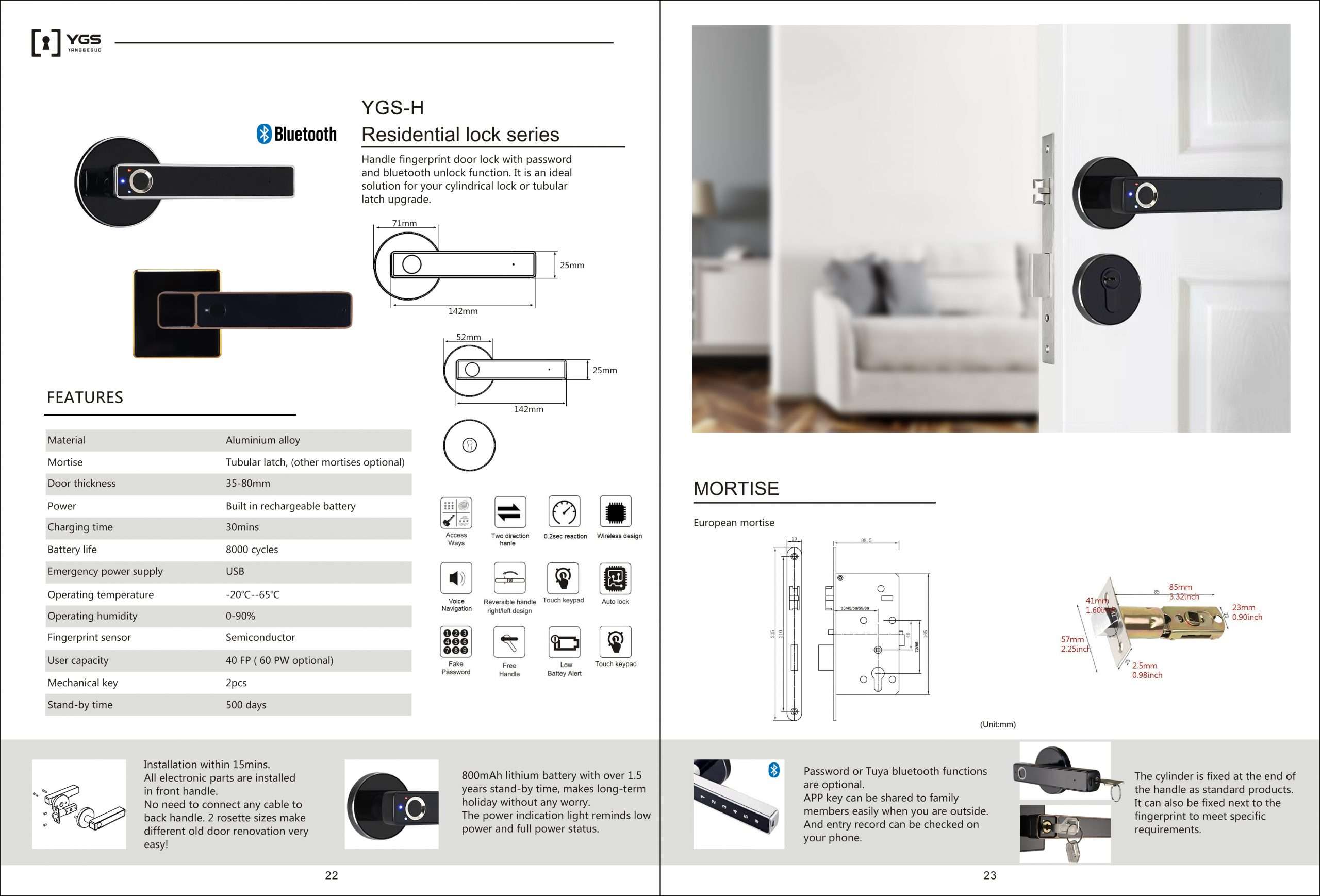

Technical Specifications

MaterialAluminum alloy
MortiseTubular latch, (other mortises optional)
Available colorBlack
Panel SizesL 178(mm)*W 78(mm)
Unlock methodBluetooth App, Pass code, Fingerprint, Wristband or key
App nameTuya app
Power supplyBuilt-in Lithium Battery
Mechanical key2pcs
Stand-by time500 days
Storage temperature-20 – + 65℃
Storage humidity0-90% RH
User capacity40 FP ( 60 PW optional)
Door directionUniversal
Reading & writing time<1s
