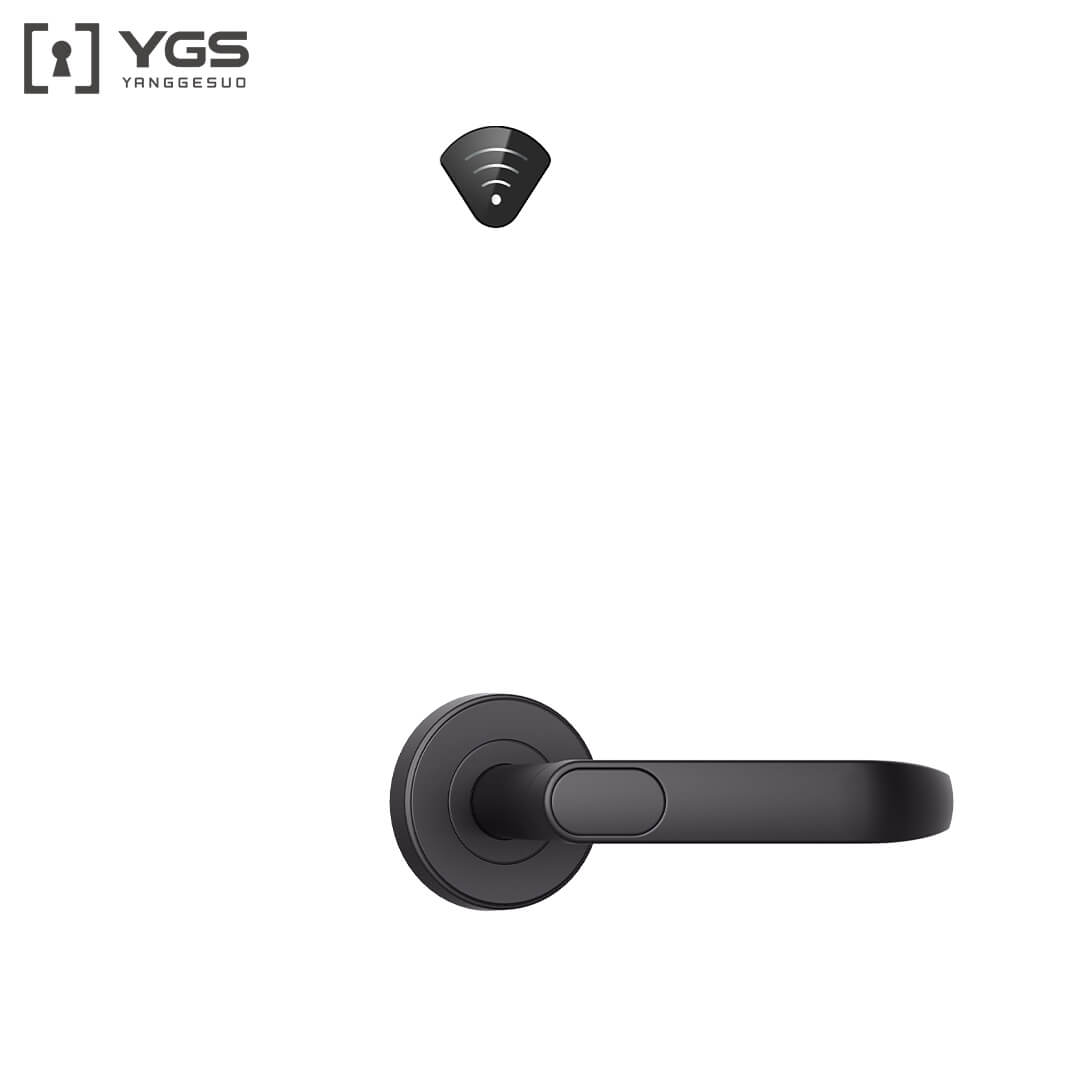

Hidden reader hotel lock. Electronic lock with RFID technology, with front and back faceplate made of Zinc alloy. Ideal to replace old locks. This simple design immensely reduce workload and mistake in a degree.


YGS9905 Catalogue



YGS-9905 Installation

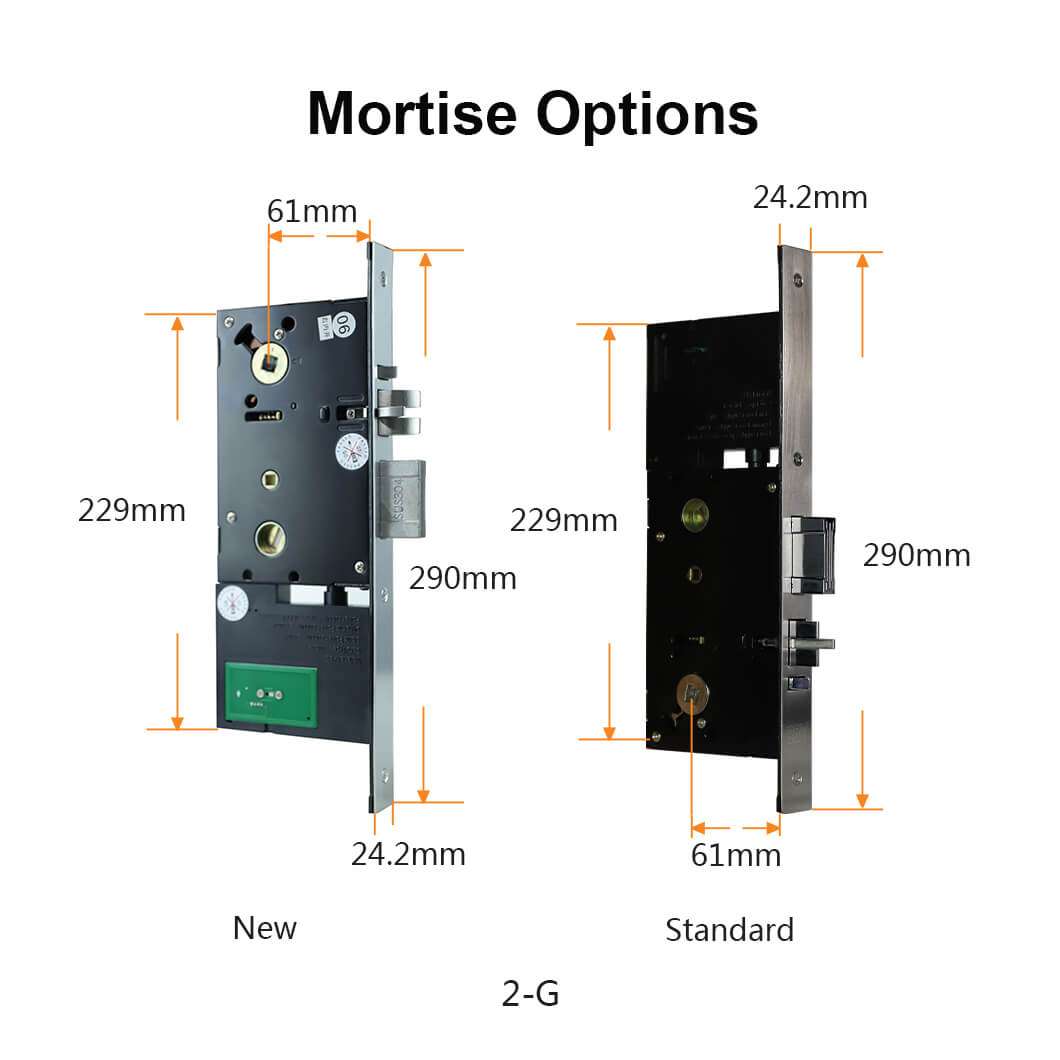

1. Compact faceplate and mortise design.
2. Stainless steel material and treatment.
3. 5-pin high-security profiles cylinder.
4. ANSI mortise (over 400 000 cycles durability).
5. Door thickness: 30~100mm.
6. Electrophoretic coating mortise for the most aggressive environment.
7. LED lock status indication.
8. Low battery voltage alarm.
9. Provides a wide range of design options for handles.



Technical Specifications

Material Zinc alloy

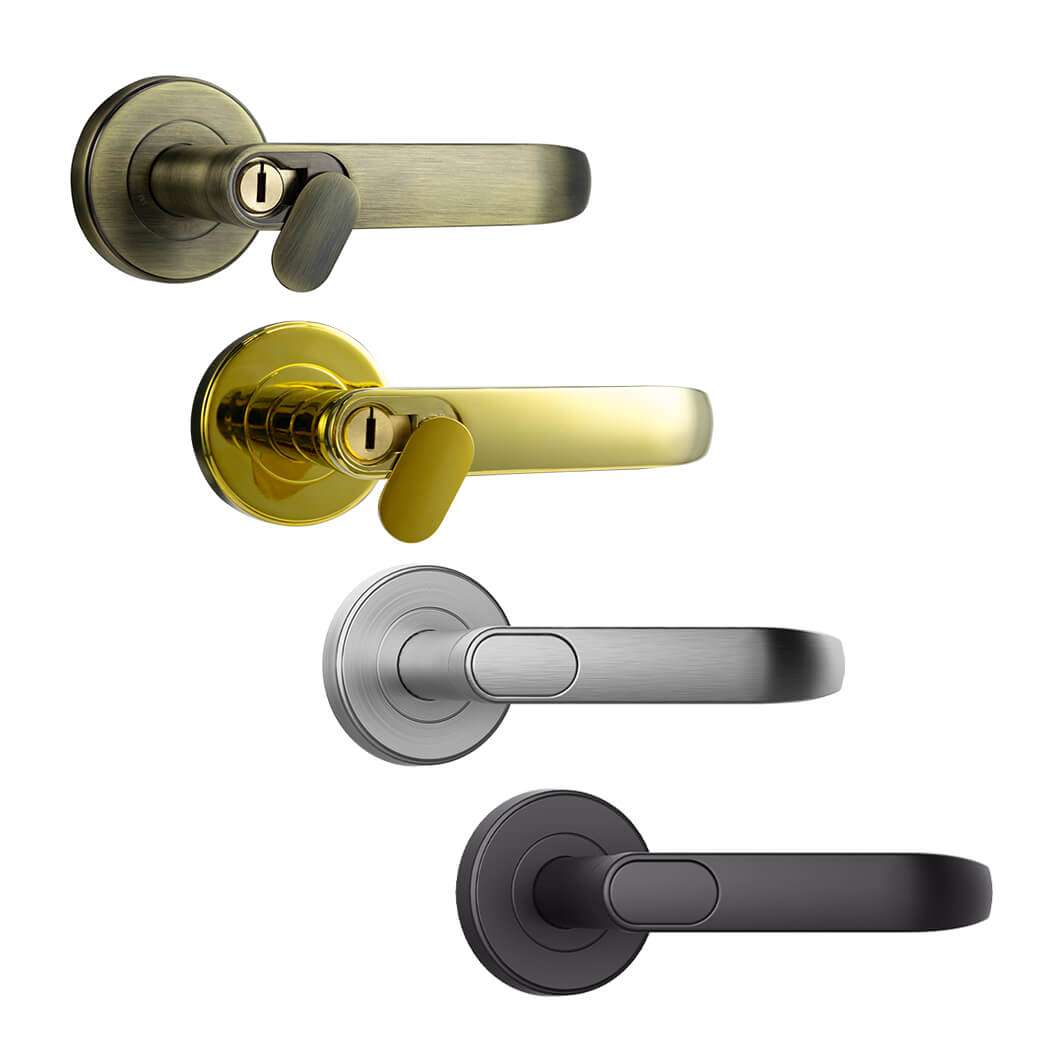

Available colorCopper, Gold, Silver, Black
Unlock methodCard, Key
Power supply4 AAA alkaline batteries
Battery lifeOver 15000 times
Static current< 40μA
Dynamic current<150 mA
Storage temperature-20- + 65℃
Storage humidity10-95% RH
Working temperature-25- + 65℃
Working humidity10-95% RH
Card reading distance0-5cm
Reading & writing time<0.25s
Reading & writing wayNon-touched closer induction
Date keepingOver 10 years
Applicable chipMifare 1 (13.56Mhz)
