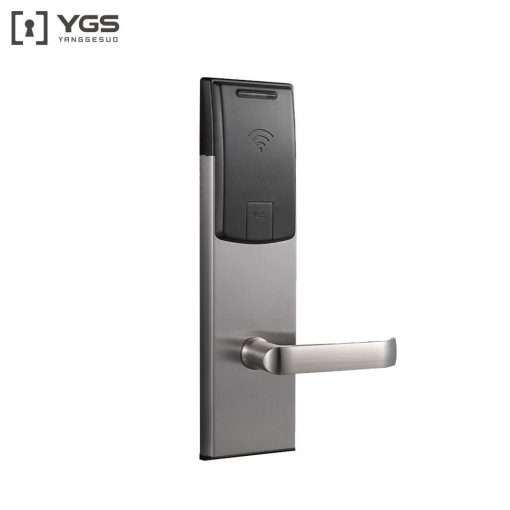

Electronic lock with RFID technology, with front and back faceplate made of stainless steel NO.304. Ideal to replace old locks. It covers the holes of many models of locks on the market.


YGS9936 Catalogue

YGS9936 Installation Diagram


YGS-9936 Installation



Technical Specifications

Material Stainless steel

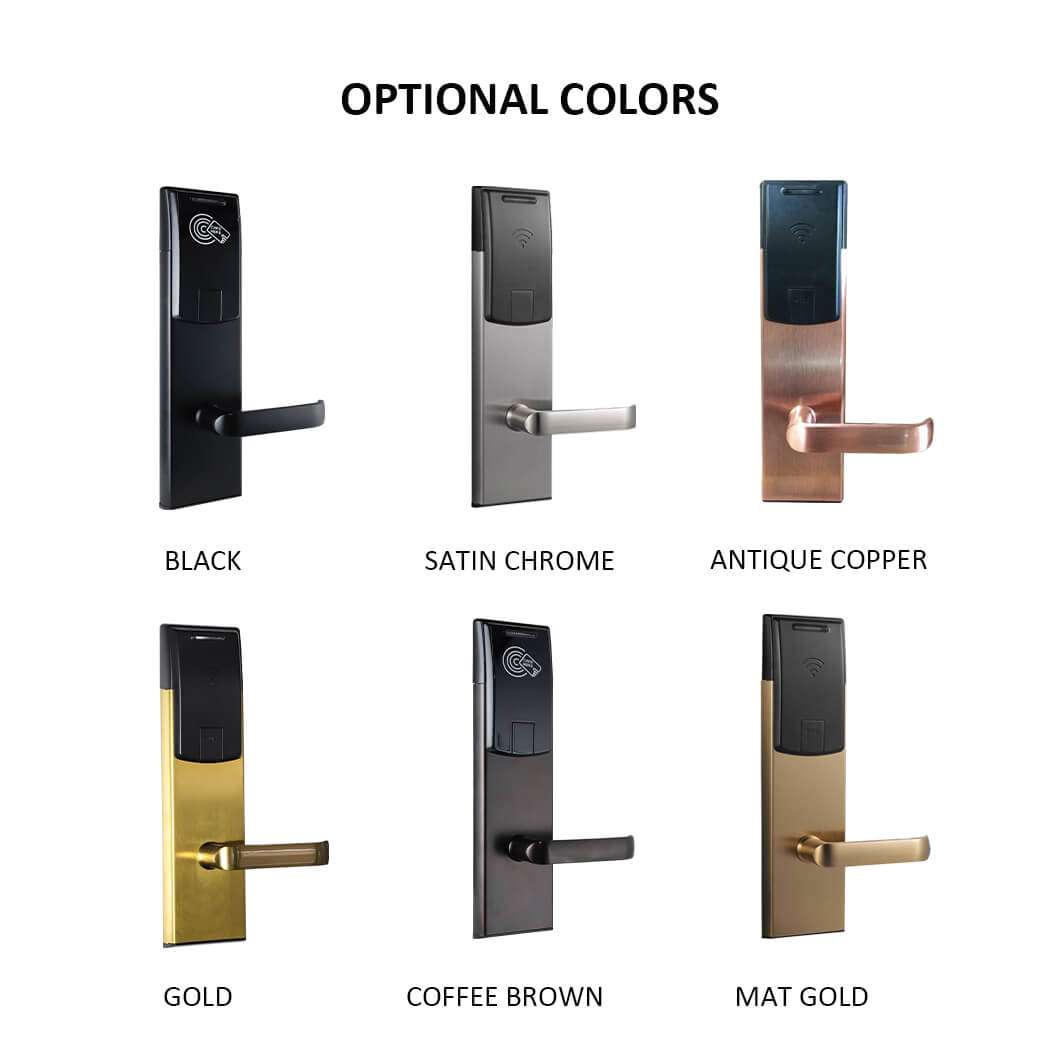

FinishSilver, Gold, Copper, Coffee black, Black
Power supply 4 AA alkaline batteries
Battery life Over 15000 cycles
Static current< 20 uA
Dynamic current<150 mA
Storage temperature-25- + 58℃
Storage humidity15-90% RH
Working temperature-25- + 58℃
Working humidity15-90% RH
Card reading distance0-5cm
Reading & writing time<0.25s
Date keepingOver 10 years
Applicable chipMifare 1 (13.56Mhz)
